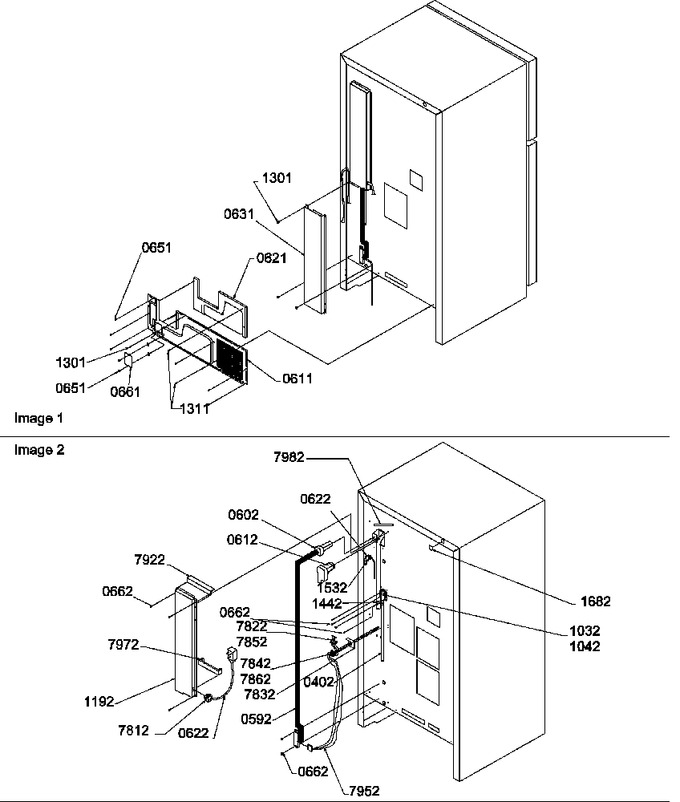

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 402 | 10908101 | Tube, Drain |
|
- | |||||
| 592 | 12172401 | Harness, Cabinet |
|
- | |||||
| 602 | 10699301 | Grommet |
|
- | |||||
| 611 | 10467930 | Back, M.c. |
|
- | |||||
| 612 | 10428001 | Plug, Ht Exch V |
|
- | |||||
| 621 | 10987509 | Insul, Mach Back |
|
- | |||||
| 622 | 10359802 | Cord-power |
|
- | |||||
| 631 | 10442202 | Cover, Heat Exch. |
|
- | |||||
| 651 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 661 | 10541404 | Cover, Water Valve |
|
- | |||||
| 662 | M0227217 | Screw, Sm |
|
- | |||||
| 1032 | 10163201 | Elbow Drain Tube |
|
- | |||||
| 1042 | A3132301 | Gasket |
|
- | |||||
| 1192 | 10442203 | Ht Ex Cover-e Ct |
|
- | |||||
| 1301 | M0227217 | Screw, Sm |
|
- | |||||
| 1311 | M0288306 | Nut-speed Clip |
|
- | |||||
| 1442 | B8372901 | Clamp |
|
- | |||||
| 1532 | M0104105 | Clip, Cord |
|
- | |||||
| 1682 | 10544301 | Plug, Im Tunnel |
|
- | |||||
| 7812 | A4554813 | Snap Bushing |
|
- | |||||
| 7822 | Y10203701 | Strain Relief |
|
- | |||||
| 7832 | 10377604 | Insul-term Blk |
|
- | |||||
| 7842 | C8969204 | Block, Term |
|
- | |||||
| 7852 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 7862 | M0219758 | Screw |
|
- | |||||
| 7922 | 10913801 | Gskt, Ht Ex Cov |
|
- | |||||
| 7952 | 10789301 | Jumper-power |
|
- | |||||
| 7972 | B5759642 | Gasket |
|
- | |||||
| 7982 | B5759643 | Gasket |
|
- |
