SELECT A DIAGRAM

01 - Cabinet Back


02 - Door Assemblies


03 - Door, Hinges And Accessories


04 - Evap And Fan Motor Assemblies


05 - Ice Maker Assy And Parts


06 - Interior Cabinet And Drain Block Assy


07 - Ladders, Lower Cabinet And Rollers

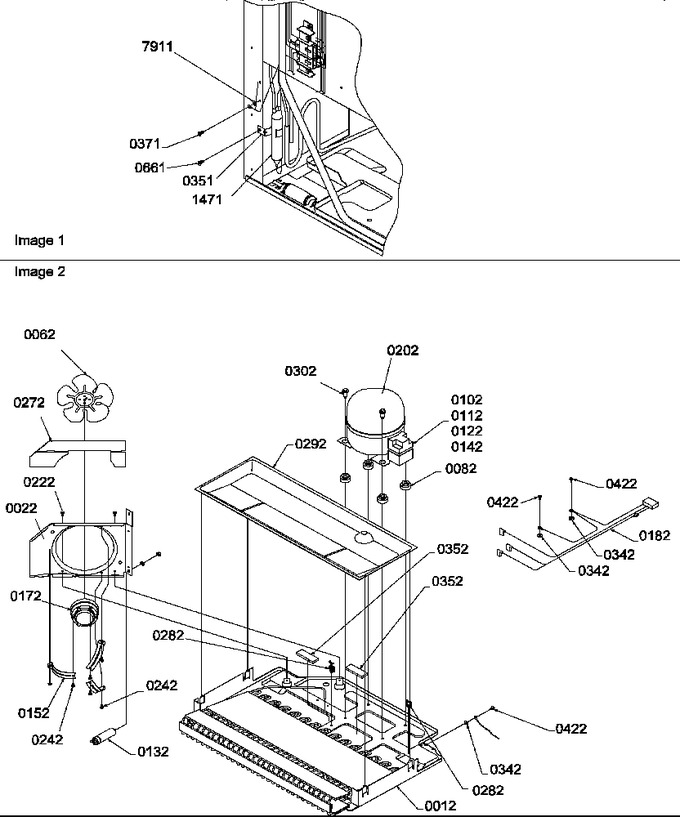

08 - Machine Compartment


09 - Shelving Assemblies


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10481216		Assy,cond/pan-e Ct		Appelez-nous	-
22	10426910		Cond Fan Shrd-e Ct		Appelez-nous	-
62	B5742604		Blade, Fan		Appelez-nous	-
82	WPW10169124		Grommet, Compressor   (Replaces: 10835901)				$ 7.55
102	10899501		Clamp, Term. Cover		Appelez-nous	-
112	10899601		Overload/relay		Appelez-nous	-
132	W10848274		Capacitor   (Replaces: 10958301)				$ 185.85
142	10899701		Cover, Terminal		Appelez-nous	-
152	10582501		Bracket, Cond. Motor		Appelez-nous	-
172	10670402		Motor, Condenser		Appelez-nous	-
182	10968601		Harness, Mach Comp		Appelez-nous	-
202	W10309997		Compressor (220/230 Vac 50hz)   (Replaces: Y10740301)				$ 583.93
222	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
242	M0223803		Screw		Appelez-nous	-
272	10442702		Gasket, Cond. Fan		Appelez-nous	-
282	B5667304		Wire Clip		Appelez-nous	-
292	10427401		Pan, Drain		Appelez-nous	-
302	M0221523		Screw, Shldr		Appelez-nous	-
342	M0272803		Lock Washer		Appelez-nous	-
351	10547001		Clip, Drier		Appelez-nous	-
352	B5759644		Gasket		Appelez-nous	-
371	WP489128		Screw   (Replaces: M0253516)				$ 11.40
422	WP489128		Screw   (Replaces: M0253516)				$ 11.40
661	M0227217		Screw, Sm		Appelez-nous	-
1471	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
7911	M0272803		Lock Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
