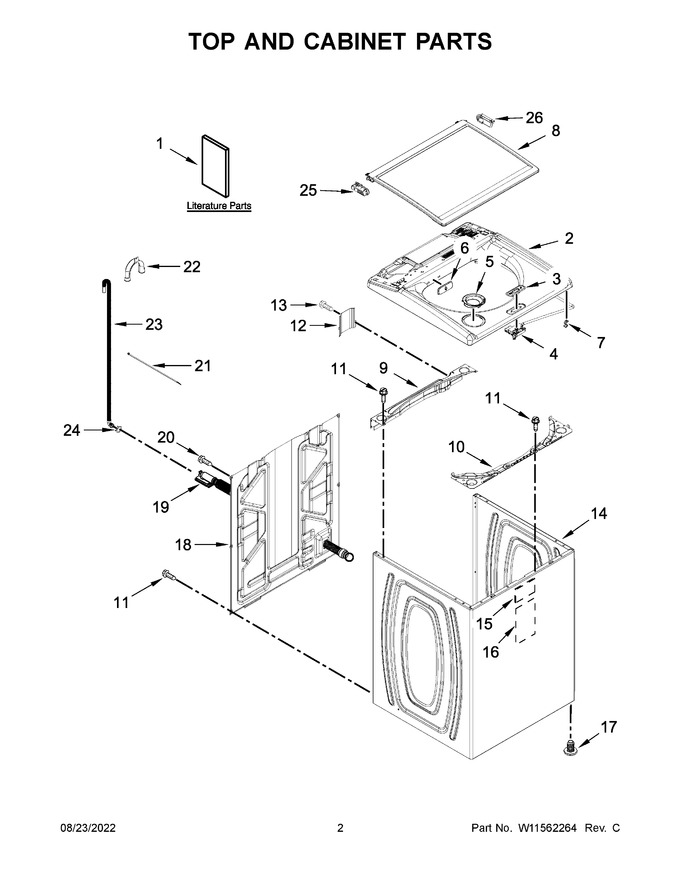

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11354658 | Owners Manual |
|
- | |||||
| 2 | W11513254 | Top (white) (Replaces: W11391478) |
|
$ 370.54 | |||||
| 3 | W11643703 | Bezel, Lid Lock (Replaces: W11403468) |
|
Immediately | $ 25.02 | ||||
| 4 | W11513248 | Latch, Lid Lock Assembly (Replaces: W11414731) |
|
Immediately | $ 76.88 | ||||
| 5 | W11234069 | Bezel, Bleach Dispenser (white) (Replaces: W11171193) |
|
$ 99.28 | |||||
| 6 | W11396263 | Bezel, Faucet |
|
$ 28.56 | |||||
| 7 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.32 | |||||
| 8 | W11513252 | Lid Assembly (complete) (Replaces: W11391493) |
|
Immediately | $ 370.46 | ||||
| 9 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 98.93 | |||||
| 10 | W11381327 | Channel, Top Front (white) (Replaces: W11384398) |
|
Immediately | $ 74.76 | ||||
| 11 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.26 | |||||
| 12 | W10676061 | Cover, Harness |
|
$ 35.02 | |||||
| 13 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 14 | W10676680 | Cabinet (white) |
|
$ 387.49 | |||||
| 15 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 7.98 | ||||
| 16 | W11611669 | Absorber, Impact (Replaces: W10834527) |
|
$ 22.17 | |||||
| 17 | W11213957 | Foot Assembly, Leveling (Replaces: W11179235) |
|
Immediately | $ 13.56 | ||||
| 18 | W11486091 | Panel, Rear (Replaces: W11417173) |
|
Immediately | $ 312.11 | ||||
| 19 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 34.08 | ||||
| 20 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 21 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.90 | |||||
| 22 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 79.53 | |||||
| 23 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 32.07 | ||||
| 24 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 25 | W11638180 | Hinge, Spacer Left (Replaces: W11391489) |
|
Immediately | $ 17.38 | ||||
| 26 | W11638181 | Hinge, Spacer Right (Replaces: W11391491) |
|
Immediately | $ 17.38 | ||||
| 1A | W11428598 | Tech Sheet |
|
- | |||||
| 1B | W11614569 | Energy Guide |
|
- | |||||
| 1C | W11436567 | Quick Start Guide |
|
- |
