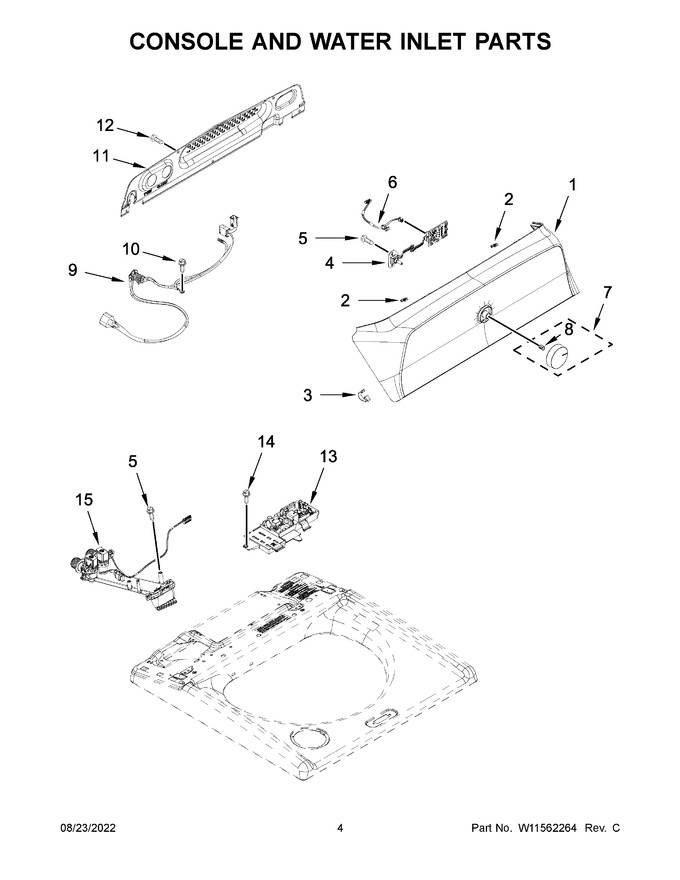

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11427157 | Console Assembly |
|
- | |||||
| 2 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.74 | |||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 4 | W11481116 | Encoder Assembly (Replaces: W11374900) |
|
Immediately | $ 77.50 | ||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 6 | W11665945 | Harness, Hmi (Replaces: W11335101) |
|
$ 21.85 | |||||
| 7 | W11406489 | Knob, Assembly (chrome) |
|
$ 47.20 | |||||
| 8 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 9 | W11513259 | Power Cord Assembly (Replaces: W11335102) |
|
Immediately | $ 40.31 | ||||
| 10 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 11 | W10611544 | Panel, Console Rear Cover |
|
$ 324.98 | |||||
| 12 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.26 | |||||
| 13 | W11513246 | Control Unit Assembly, Machine And Motor (Replaces: W11428994) |
|
Immediately | $ 266.29 | ||||
| 14 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 15 | W11513255 | Water Inlet Assembly (complete) (Replaces: W11385821) |
|
Immediately | $ 91.85 |
