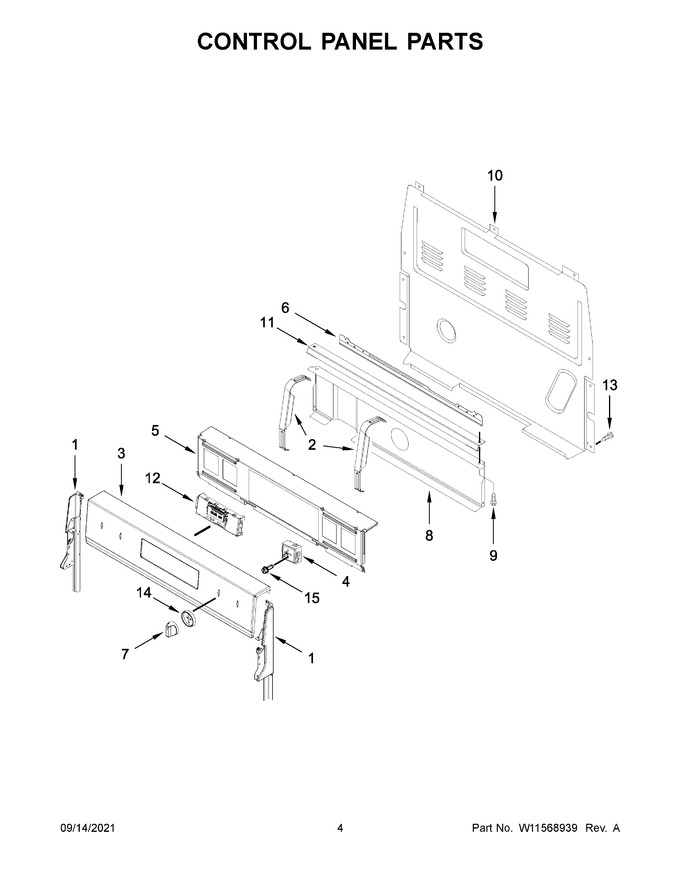

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11213290 | Endcap (black (left)) |
|
$ 347.77 | |||||
| 2 | W10856361 | Bracket, Control |
|
- | |||||
| 3 | W11106246 | Console (stainless) (Replaces: W10869985) |
|
$ 538.53 | |||||
| 4 | W10857622 | Switch, Infinite (left Front, Right Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 5 | W10901802 | Panel, Backer |
|
$ 96.79 | |||||
| 6 | W11443964 | Bracket, Eye Brow (black) (Replaces: W11051312) |
|
$ 222.43 | |||||
| 7 | W11416802 | Knob (stainless) (Replaces: W10917219) |
|
Immediately | $ 74.93 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 12 | W11536793 | Control, Electronic (lcx) (black) (Replaces: W11511567) |
|
Immediately | $ 275.61 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | W10918419 | Bezel (stainless) |
|
Immediately | $ 75.51 | ||||
| 15 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| 14A | W10917223 | Bezel (black Stainless) |
|
- | |||||
| 1A | W11213292 | Endcap (black (right)) |
|
$ 71.65 | |||||
| 3A | W11105825 | Console (black Stainless) (Replaces: W10881622) |
|
$ 508.47 | |||||
| 4A | W10911303 | Switch, Infinite (left Rear, Right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 4B | W10917724 | Switch, Infinite (left Rear) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 7A | W11674369 | Knob (black Stainless) (Replaces: W10917220) |
|
$ 21.54 |
