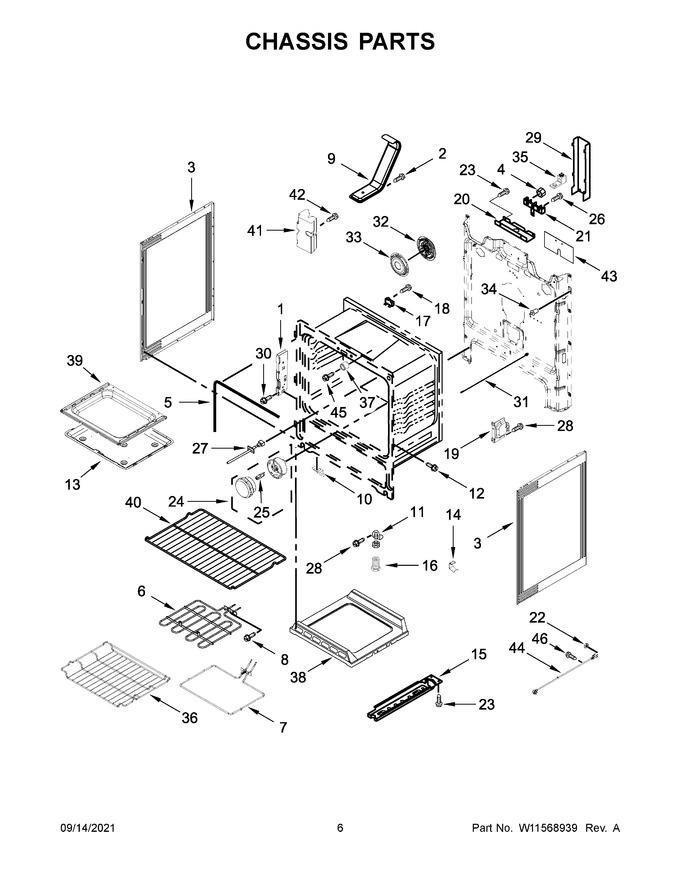

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
2	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
3	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 178.50
4	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 8.19
5	W11562931		Gasket, Door   (Replaces: W11491752)			Immediately	$ 87.76
6	W11321472		Element, Broil   (Replaces: W11095929)			Immediately	$ 112.54
7	W10779716		Element, Bake   (Replaces: W10774342)			Immediately	$ 61.45
8	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
9	WPW10134285		Tube, Vent   (Replaces: W10134285)			Immediately	$ 263.00
10	W10035900		Support, Oven Bottom				$ 14.36
11	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 32.59
12	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
13	W11379357		Bake Pan			Immediately	$ 82.86
14	W10137382		Clip, Panel			Immediately	$ 48.42
15	W11818353		Base Rail Assembly (left)   (Replaces: W10390008)				$ 62.66
16	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 8.24
17	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 50.10
18	3196172		Screw			Immediately	$ 13.47
19	W10273002		Bracket, Oven Support				$ 76.34
20	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
21	WP8203546		Block, Terminal   (Replaces: W10246624)			Immediately	$ 30.13
22	7103P02760		Nut		Appelez-nous	-
23	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
24	W11594170		Light Assembly   (Replaces: W11430367)			Immediately	$ 35.95
25	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 27.71
26	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
27	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 140.71
28	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
29	WPW10326122		Cover, Terminal Block   (Replaces: W10326122)				$ 139.60
30	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
31	W11370463		Rod, Door Switch			Immediately	$ 66.87
32	W11527111		Fan, Convection   (Replaces: W11353930)			Immediately	$ 164.77
33	WPW10346154		Cover, Convection   (Replaces: W10346154)			Immediately	$ 77.67
34	WP9757262		Switch, Door   (Replaces: W10627802)			Immediately	$ 144.44
35	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 8.87
36	W11256463		Rack, Oven (gull-wing)   (Replaces: W10289145)			Immediately	$ 132.50
37	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 56.06
38	W10726740		Shield, Heat				$ 145.01
39	W10777210		Bottom, Oven   (Replaces: W10774446)			Immediately	$ 164.22
40	WPW10531060		Rack, Oven   (Replaces: W10531060)			Immediately	$ 122.16
41	W11135752		Counterweight   (Replaces: W10910404)			Immediately	$ 153.79
42	W11135756		Screw   (Replaces: W11034869)				$ 14.73
43	W10655441		Shield, Power Cord				$ 144.36
44	W11226497		Cord, Power   (Replaces: W10624592)			Immediately	$ 72.99
45	W11169708		Screw   (Replaces: 3196560)				$ 13.36
46	W11244557		Screw   (Replaces: 3196173)				$ 14.29
15A	W11818353		Base Rail Assembly (right)   (Replaces: W10390007)				$ 62.66
NI	WPW10225523		Insulation, Bottom   (Replaces: W10225523)				$ 120.25
NI	WPW10225524		Insulation, Back   (Replaces: W10225524)				$ 114.68
NI	WPW10194393		Insulation, Wrap   (Replaces: W10194393)				$ 129.15
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	4820F01559		Insulation, Strap		Appelez-nous	-
