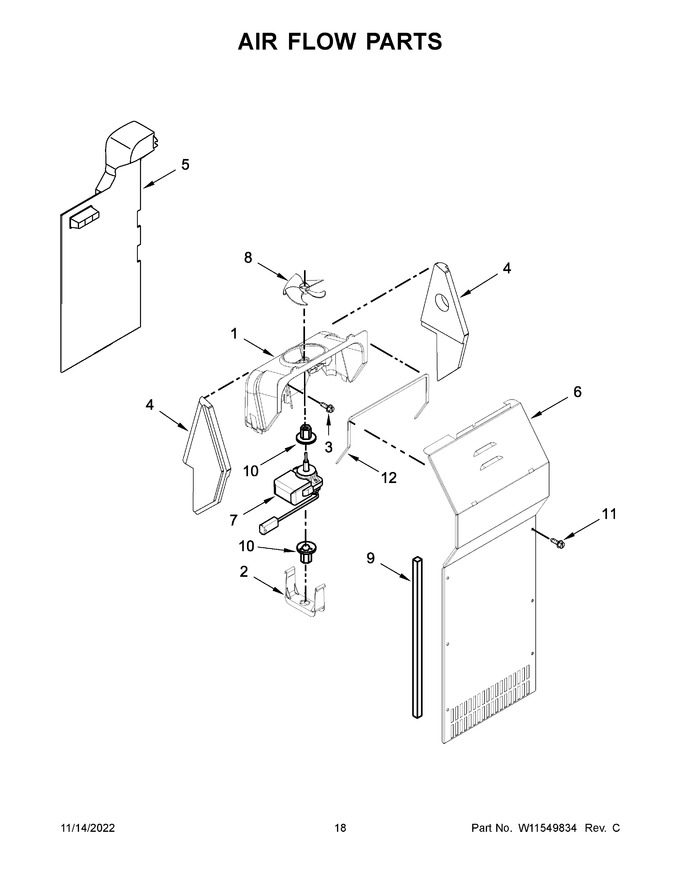

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11263195		Scroll, Fan   (Replaces: W11228713)				$ 340.25
2	W11700295		Retainer, Fan Motor   (Replaces: W10188846)				$ 23.30
3	WP489478		Screw   (Replaces: 489478)				$ 8.18
4	4388358		Support, Fan Scroll (left Hand)   (Replaces: W11414496)				$ 32.72
5	W11084384		Duct, Freezer Air		Appelez-nous	-
6	W11720796		Cover, Evaporator   (Replaces: W10505307)		Appelez-nous	-
7	WP2315549		Motor, Fan   (Replaces: 2315549)			Immediately	$ 249.86
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
9	WP2304241		Gasket   (Replaces: 2304241)			Immediately	$ 86.94
10	WP2176759		Grommet, Motor   (Replaces: 2176759)				$ 8.16
11	WP693995		Screw   (Replaces: W10142292)			Immediately	$ 7.55
12	WP2155789		Gasket   (Replaces: 2155789)				$ 8.18
4A	4388358		Support, Fan Scroll (right Hand)   (Replaces: W11414497)				$ 32.72
