SELECT A DIAGRAM
New Model Search:

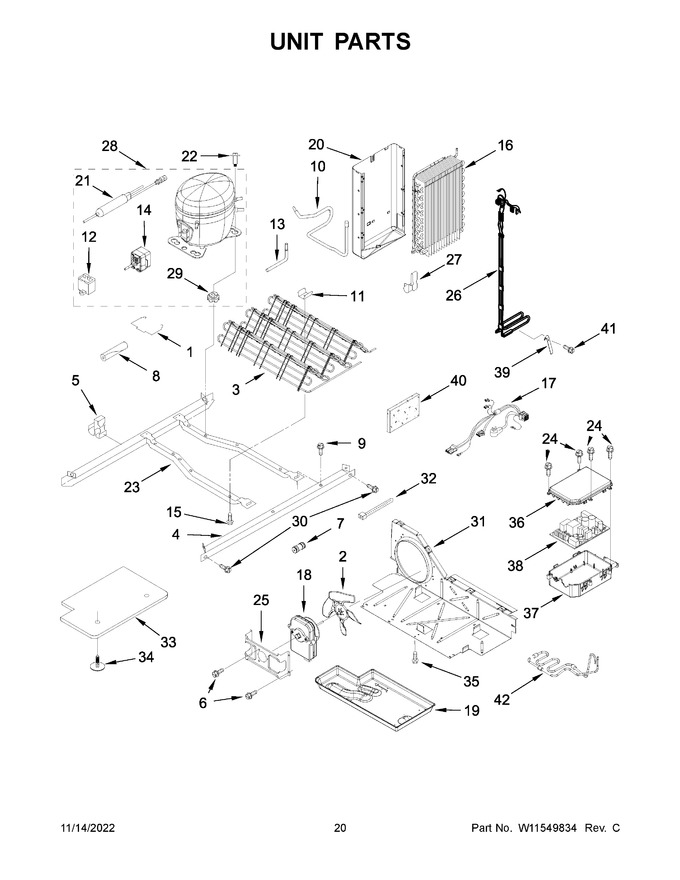

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 11.87 | ||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11632924 | Assembly, Condenser (also Order The Following Lokring Parts) (Replaces: W10904626) |
|
Immediately | $ 237.55 | ||||
| 4 | W10900442 | Rail, Unit Mounting |
|
- | |||||
| 5 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 11.12 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 7 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 69.57 | ||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 10 | W11506460 | Tube, Suction |
|
$ 72.80 | |||||
| 11 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 19.38 | |||||
| 12 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 58.86 | ||||
| 13 | W11566476 | Tube, Process (Replaces: W11457842) |
|
$ 49.14 | |||||
| 14 | WPW10197428 | Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 15 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 16 | W11546692 | Evaporator (also Order The Following Lokring Parts) (Replaces: W11357918) |
|
$ 263.89 | |||||
| 17 | W11679642 | Assembly, Unit Wire (Replaces: W11218408) |
|
- | |||||
| 18 | W11578915 | Motor, Condenser Fan (Replaces: W10522629) |
|
Immediately | $ 71.42 | ||||
| 19 | W11678304 | Tray, Evaporator (Replaces: W10897557) |
|
$ 57.39 | |||||
| 20 | W11400740 | Assembly, Heat Shield And Drain Pan |
|
- | |||||
| 21 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 22 | W11417341 | Screw (Replaces: W10476309) |
|
$ 14.07 | |||||
| 23 | W10900446 | Frame, Unit Mounting (includes Unit Mounting Rail) |
|
- | |||||
| 24 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 25 | WP2181929 | Bracket, Fan Mounting (Replaces: 2181929) |
|
$ 12.93 | |||||
| 26 | W11650661 | Heater (Replaces: W11573117) |
|
$ 212.13 | |||||
| 27 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 28 | W11727248 | Compressor (also Order The Following Lokring Parts) (Replaces: W11358352) |
|
Immediately | $ 1,043.72 | ||||
| 29 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.55 | ||||
| 30 | 489340 | Bolt |
|
- | |||||
| 31 | W10896764 | Baffle, Air (Replaces: W10897567) |
|
$ 101.20 | |||||
| 32 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 33 | W10897560 | Assembly, Unit Cover (bottom) |
|
$ 101.57 | |||||
| 34 | 489396 | Clip |
|
$ 11.26 | |||||
| 35 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 36 | W10313215 | Cover, Electronic Control |
|
$ 77.99 | |||||
| 37 | 2323186 | Box, Control |
|
$ 107.48 | |||||
| 38 | W11566891 | Control, Electronic (Replaces: W11321509) |
|
$ 330.55 | |||||
| 39 | W11611126 | Heat Probe (Replaces: W11399989) |
|
$ 23.16 | |||||
| 40 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 41 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 42 | W11678305 | Assembly, Precooler Formed (Replaces: W11502743) |
|
$ 66.63 | |||||
| 16A | W11504448 | 5/1.8 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 48.58 | ||||
| 16B | W11506620 | 8 Nk Al 00 (suction Line To Evaporator) |
|
Immediately | $ 32.10 | ||||
| 21A | W11504433 | 6/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 29.40 | ||||
| 21B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 43.90 | ||||
| 28A | W11504415 | 8.5/8 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 25.89 | ||||
| 28B | W11504431 | 7/5 Nr Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 27.13 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.88 | ||||
| 3A | W11506623 | 5 Nk Ms 00 (high Side To Condenser) |
|
Immediately | $ 22.00 | ||||
| 3B | W11504445 | 5/4 Nr Ms 00 (suction Line To Condenser) |
|
Immediately | $ 28.92 | ||||
| NI | NP | Tub Assembly (not Serviced) |
|
- |
