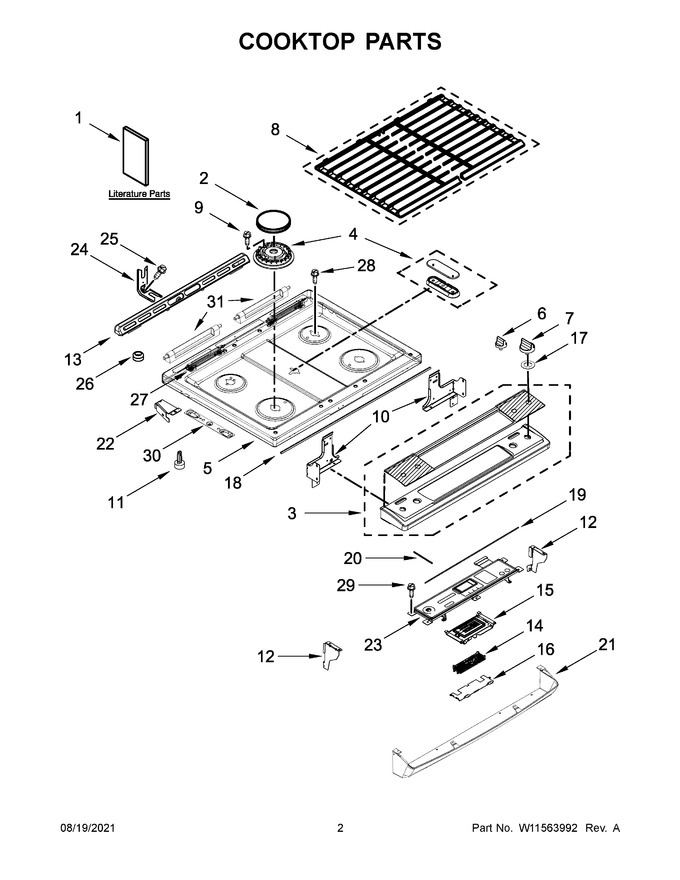

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11426594		Owners Manual		Appelez-nous	-
2	W11834859		Burner Cap Kit (black (set Of 4))   (Replaces: W11352138)		Appelez-nous	-
3	W11564647		Assembly, Console (stainless)   (Replaces: W11527534)			Immediately	$ 395.71
4	W11435630		Spreader, Flame (left Front & Right Front)   (Replaces: W11352018)			Immediately	$ 82.12
5	W11435855		Cooktop (includes Hinges) (black)   (Replaces: W11411996)				$ 488.78
6	W11211501		Knob (mini) (stainless)   (Replaces: W10850039)			Immediately	$ 21.54
7	W11517334		Knob (stainless)   (Replaces: W10850033)			Immediately	$ 57.62
8	W11435675		Grate Kit (black)   (Replaces: W11353429)			Immediately	$ 397.11
9	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
10	W10289170		Support, Cooktop (left)				$ 30.05
11	8016P02260		Glide, Main Top		Appelez-nous	-
12	W10547960		Bracket, Console (left)				$ 23.22
13	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 205.56
14	W11564648		Cntrl-elec   (Replaces: W11527166)				$ 499.87
15	W11122852		Assembly, Display   (Replaces: W10759327)			Immediately	$ 527.64
16	W10558372		Bracket, Control				$ 25.10
17	W11131701		Bushing (black)   (Replaces: W10739036)				$ 23.27
18	W10802441		Gasket, Console/ Cooktop   (Replaces: W10612719)			Immediately	$ 22.73
19	W10802457		Gasket, Console   (Replaces: W10689101)				$ 21.33
20	W11744482		Gasket, Console Short   (Replaces: W10689102)				$ 22.92
21	W11218703		Console, Lower Panel (black)   (Replaces: W10570527)			Immediately	$ 162.27
22	W10162253		Brace, Corner (left)				$ 74.13
23	W11564650		Swtch-memb   (Replaces: W11527907)			Immediately	$ 372.72
24	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 23.03
25	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
26	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 14.91
27	NP		Refrigerant Charge 5.75 Oz. (r-134a)		Appelez-nous	-
28	3196172		Screw			Immediately	$ 13.47
29	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
30	W10879790		Grate Hinge Spacer		Appelez-nous	-
31	W10826075		Rear, Hinge-grate (stainless Model Only)				$ 109.95
10A	W10598048		Bracket, Console (center)				$ 25.73
10B	W10289169		Support, Cooktop (right)				$ 30.05
12A	W10547961		Bracket, Console (right)				$ 23.22
1A	W11524751		Quick Start Guide		Appelez-nous	-
1B	W11523162		Tech Sheet		Appelez-nous	-
22A	W10162252		Brace, Corner (right)				$ 78.59
4A	W11435657		Spreader, Flame (left Rear)   (Replaces: W11352021)				$ 84.43
4B	W11435659		Spreader, Flame (right Rear)   (Replaces: W11352020)				$ 84.85
4C	W11435660		Spreader, Flame (center)   (Replaces: W11367086)			Immediately	$ 98.56
NI	W11123868		Reducer, Venturi (choke)   (Replaces: W10340851)				$ 103.62
NI	W10908899		Harness, Main				$ 235.68
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 224.96
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 53.35
NI	W10580229		Wire, Ground				$ 38.22
NI	NP		Refrigerant Charge 5.75 Oz. (r-134a)		Appelez-nous	-
NI	W11198972		Harness, Bake/broil   (Replaces: W10754419)				$ 35.84
NI	7111P01760		Clamp, Wire		Appelez-nous	-
