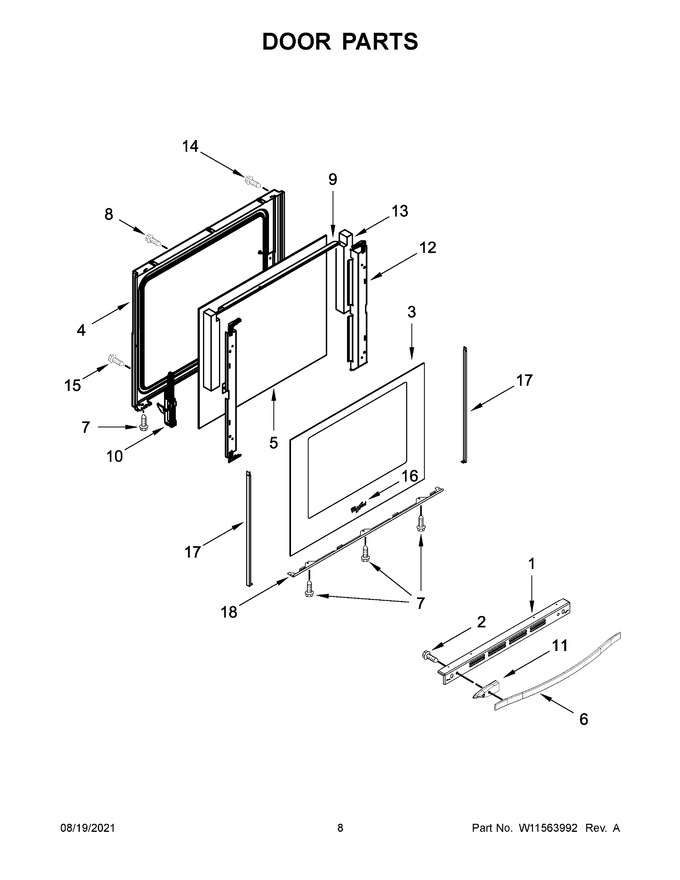

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11564642 | Trim, Vent (stainless) (Replaces: W11519842) |
|
Immediately | $ 217.98 | ||||
| 2 | W10896982 | Screw (Replaces: W10477496) |
|
$ 8.40 | |||||
| 3 | W11705268 | Glass, Outer (black) (Replaces: W10871829) |
|
Immediately | $ 135.33 | ||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 331.51 | ||||
| 5 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 252.42 | |||||
| 6 | W11107877 | Handle, Door (stainless) (Replaces: W10918786) |
|
Immediately | $ 264.75 | ||||
| 7 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 8 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 9 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 237.04 | ||||
| 10 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 63.80 | ||||
| 11 | W10917796 | Standoff, Handle (black) |
|
$ 72.01 | |||||
| 12 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 133.75 | |||||
| 13 | W11688565 | Insulation, Door (Replaces: W10772958) |
|
$ 27.02 | |||||
| 14 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 8.20 | ||||
| 15 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 16 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 17 | W10334004 | Trim, Door (black) |
|
$ 233.76 | |||||
| 18 | W10334031 | Trim, Door Bottom (black) |
|
$ 77.86 |
