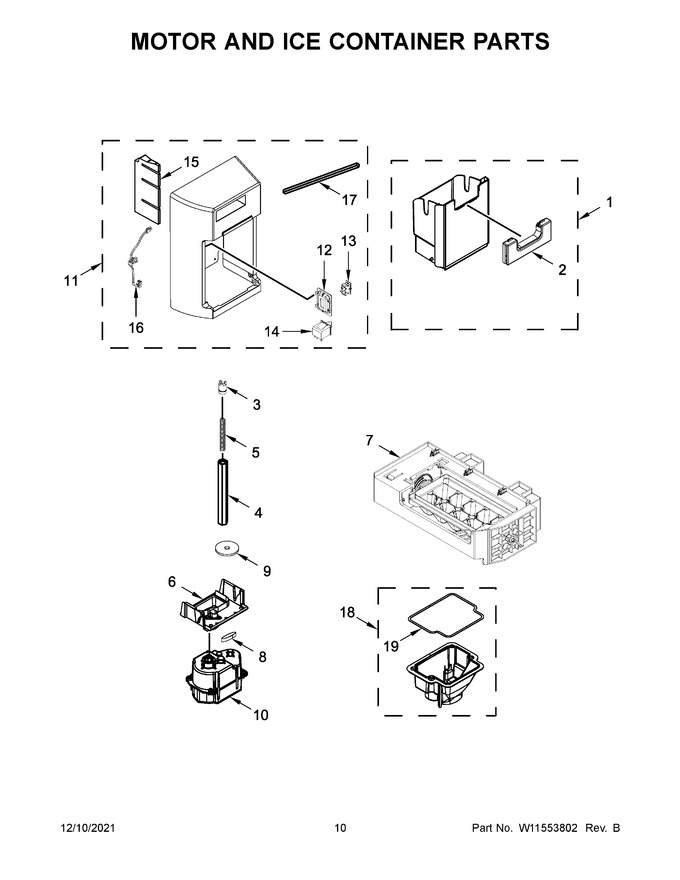

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11347840 | Container, Ice (complete) (Replaces: W11251049) |
|
Immediately | $ 362.91 | ||||
| 2 | W11652042 | Assembly, Latch (Replaces: W10693542) |
|
Immediately | $ 24.98 | ||||
| 3 | WP2220458 | Coupling, Bottom (Replaces: 2220458) |
|
Immediately | $ 41.04 | ||||
| 4 | WPW10258544 | Shaft, Drive (Replaces: W10258544) |
|
Immediately | $ 26.52 | ||||
| 5 | W10852956 | Spring, Coupling (Replaces: W10754509) |
|
Immediately | $ 21.40 | ||||
| 6 | W11573761 | Assembly, Mounting Plate (Replaces: W11240062) |
|
Immediately | $ 62.92 | ||||
| 7 | W10873791 | Assembly, Ice Maker (Replaces: W11130444) |
|
Immediately | $ 124.47 | ||||
| 8 | WPW10291905 | Gasket (Replaces: W10291905) |
|
$ 27.68 | |||||
| 9 | WP2305382 | Boot, Rubber (Replaces: 2305382) |
|
$ 10.71 | |||||
| 10 | W11202789 | Motor, Dispenser (Replaces: W11117906) |
|
Immediately | $ 235.12 | ||||
| 11 | W11558186 | Cover, Container (Replaces: W11466849) |
|
$ 123.10 | |||||
| 12 | W11341247 | Plate, Switch |
|
Immediately | $ 28.73 | ||||
| 13 | W11469740 | Switch, Energy Saver (Replaces: W11311953) |
|
Immediately | $ 38.34 | ||||
| 14 | W11123943 | Switch, Rocker Arm (Replaces: W11032814) |
|
$ 36.66 | |||||
| 15 | W10749467 | Filler, Eps Icemaker Cover |
|
- | |||||
| 16 | W11684619 | Assembly, Wire Jumper Switch (Replaces: W10646076) |
|
$ 20.90 | |||||
| 17 | WPW10400435 | Gasket, Foam (Replaces: W10400435) |
|
$ 25.84 | |||||
| 18 | W11678273 | Assembly, Motor Box (Replaces: W10765378) |
|
Immediately | $ 77.02 | ||||
| 19 | W10166854 | Gasket |
|
$ 26.69 |
