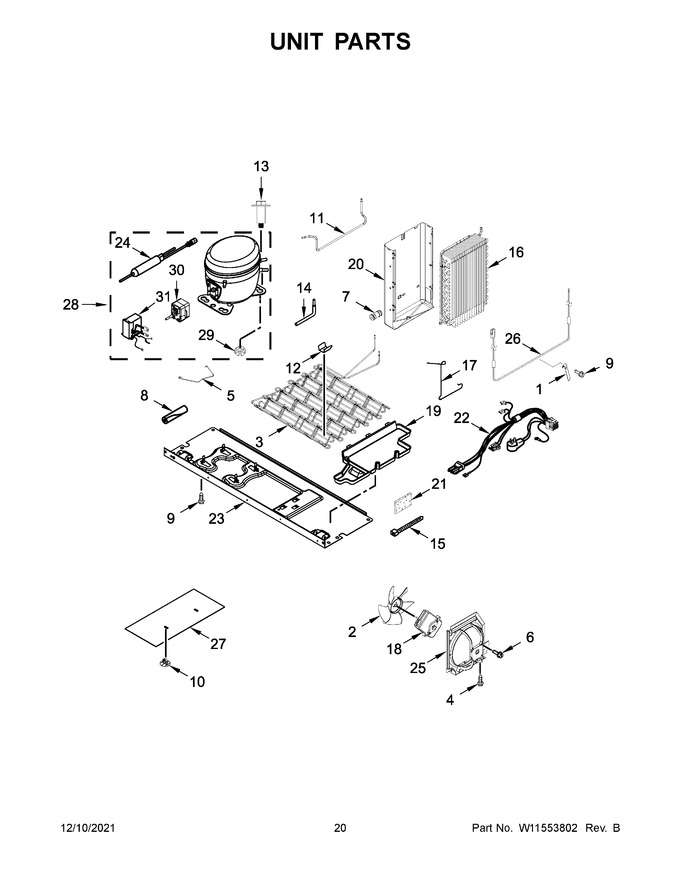

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11566486 | Probe, Heat (Replaces: W11399994) |
|
- | |||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11708426 | Assembly, Condenser (also Order The Following Lokring Parts) (Replaces: W10240365) |
|
$ 271.19 | |||||
| 4 | W10142255 | Screw |
|
- | |||||
| 5 | W11577799 | Strap, Bale (Replaces: W11495051) |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.61 | ||||
| 7 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 69.57 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 9 | 3400524 | Screw (Replaces: W10142287) |
|
$ 13.28 | |||||
| 10 | W10815861 | Clip, Bottom Cover |
|
$ 15.80 | |||||
| 11 | W11567939 | Tube, Suction (Replaces: W11506457) |
|
- | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | W11417341 | Screw |
|
$ 14.07 | |||||
| 14 | 2325479 | Tube, Process |
|
- | |||||
| 15 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 16 | W11546605 | Evaporator (also Order The Following Lokring Parts) (Replaces: W11357917) |
|
Immediately | $ 253.33 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 185.05 | ||||
| 19 | W10714793 | Tray, Evaporator (includes Gasket) |
|
$ 164.33 | |||||
| 20 | W11400741 | Shield, Heat |
|
- | |||||
| 21 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 22 | W11293381 | Assembly, Unit Wire (Replaces: W11025791) |
|
$ 149.44 | |||||
| 23 | W10680691 | Baseplate |
|
- | |||||
| 24 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 25 | WPW10251467 | Baffle, Air (Replaces: W10251467) |
|
$ 84.80 | |||||
| 26 | W11546981 | Heater, Defrost (Replaces: W11355311) |
|
$ 133.28 | |||||
| 27 | W10284726 | Cover, Unit Bottom |
|
$ 115.91 | |||||
| 28 | W11580057 | Compressor (also Order The Following Lokring Parts) (Replaces: W11332033) |
|
Immediately | $ 400.16 | ||||
| 29 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.55 | ||||
| 30 | W11547180 | Device, Combination Start (start Relay And Overload) (Replaces: W11359381) |
|
Immediately | $ 37.83 | ||||
| 31 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 58.86 | ||||
| 16A | W11504449 | 4/2 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 37.44 | ||||
| 16B | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.88 | ||||
| 24A | W11504433 | 6/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 29.40 | ||||
| 24B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 43.90 | ||||
| 28A | W11504415 | 8.5/8 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 25.89 | ||||
| 28B | W11504431 | 7/5 Nr Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 27.13 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.88 | ||||
| 3A | W11506623 | 5 Nk Ms 00 (high Side To Condenser) |
|
Immediately | $ 22.00 | ||||
| 3B | W11504445 | 5/4 Nr Ms 00 (suction Line To Condenser) |
|
Immediately | $ 28.92 | ||||
| NI | NP | Cabinet (not Serviced) |
|
- |
