Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI9208FF59B665205FA02090F61BA46518 Liner (not A Seviceable Part) Appelez-nous -
2 WPW10318948 Shelf, Wire   (Replaces: W10318948) Special Order $ 155.23

3 WP841180A Tray, Ice   (Replaces: 2151664) In-Stock Immediately $ 47.84

4 W11384469 Switch, Rocker   (Replaces: W10847853) In-Stock Immediately $ 39.09

5 WPW10318947 Shelf, Wire   (Replaces: W10318947) Special Order $ 91.81

6 W11577967 Bin, Freezer   (Replaces: 2309757) Special Order $ 96.30

7 WPW10130299 Cup, Shelf   (Replaces: W10130299) In-Stock Immediately $ 14.70

8 WP3-24004-109 Screw   (Replaces: W10191954) Special Order $ 9.14

9 W11223328 Assembly, Stud   (Replaces: 2196208) In-Stock Immediately $ 14.77

10 WPW10318961 Shelf, Wire   (Replaces: W10318961) In-Stock Immediately $ 81.55

11 W11602886 Light Module, Led   (Replaces: W11468934) Special Order $ 42.63

12 2215823 Clip, Air Duct   (Replaces: 2315163) Special Order $ 10.94

13 W10318945 Shelf, Wire Special Order $ 103.20


    View Diagram in Separate Window     Print Icon   Print Part List

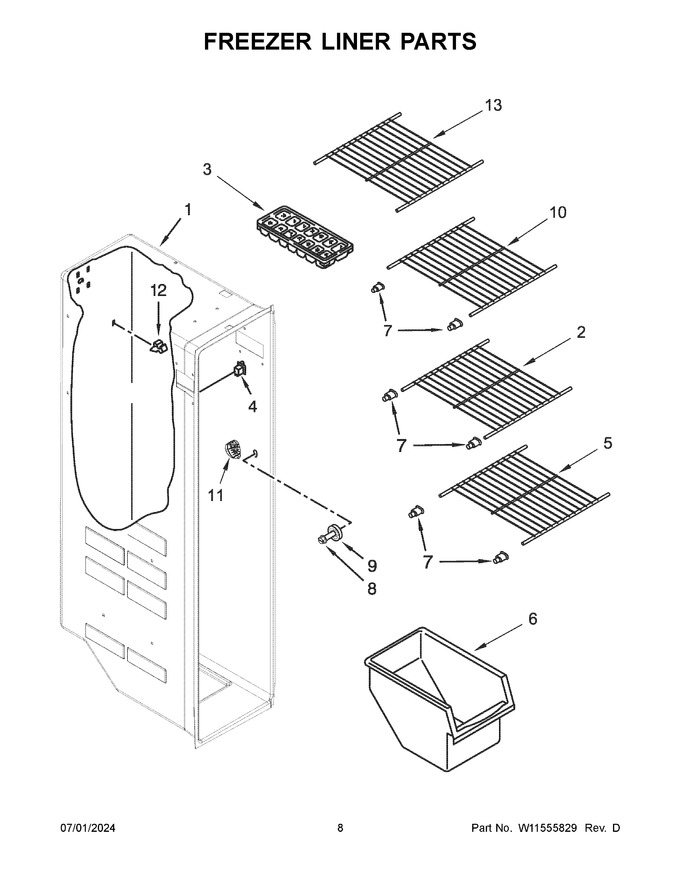

Diagram for WRS315SNHB06
