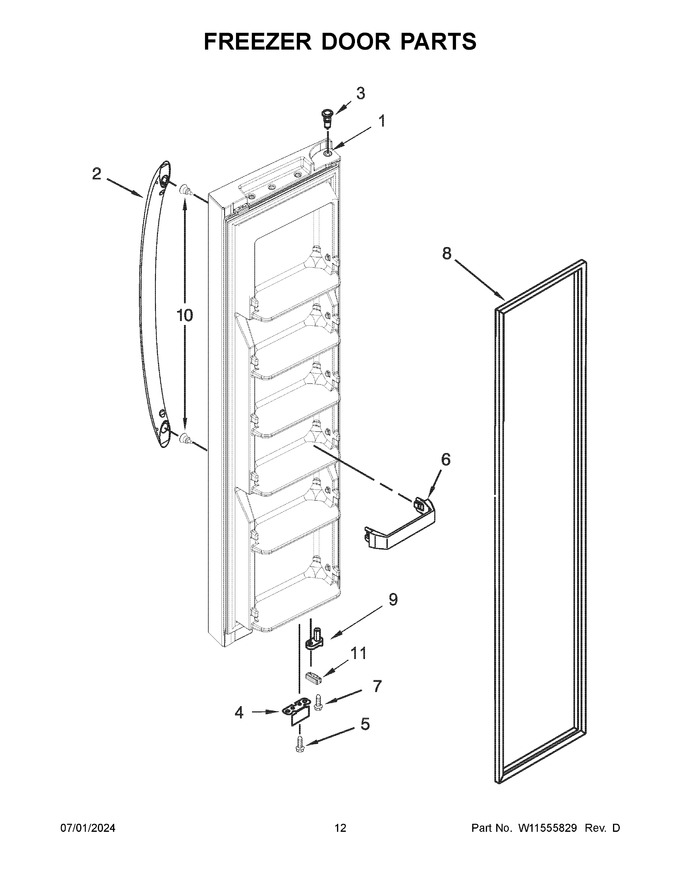

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10911760 | Door, Freezer (includes Item 8) (white) (Replaces: W10911760) |
|
$ 1,215.93 | |||||
| 2 | W11432251 | Handle (white) (Replaces: W11289637) |
|
$ 189.72 | |||||
| 3 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 4 | W11557261 | Bracket, Door Stop (black) (Replaces: W10900531) |
|
Immediately | $ 18.67 | ||||
| 5 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 6 | WP2309718 | Trivet (Replaces: 2309718) |
|
$ 61.49 | |||||
| 7 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 8 | 2159075 | Gasket, Door (beige) (Replaces: W10911412) |
|
Immediately | $ 333.00 | ||||
| 9 | W11661926 | Thimble, Cam (Replaces: W10900532) |
|
$ 14.02 | |||||
| 10 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 11 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 14.93 | |||||
| 11A | W10407187 | Bumper, Door (black) |
|
$ 48.34 | |||||
| 11B | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 | ||||
| 1A | LW10911763 | Door, Freezer (includes Item 8) (black) (Replaces: W10911763) |
|
$ 1,025.89 | |||||
| 1B | LW11258473 | Door, Freezer (includes Item 8) (stainless) (Replaces: W11258473) |
|
$ 1,265.68 | |||||
| 2A | W11450221 | Handle (black) (Replaces: W11289638) |
|
$ 189.65 | |||||
| 2B | W11542651 | Handle (stainless) (Replaces: W11289640) |
|
Immediately | $ 140.99 | ||||
| 8A | 2159083 | Gasket, Door (black) (Replaces: W10911422) |
|
$ 251.49 | |||||
| 8B | WPW10136734 | Gasket, Door (grey) (Replaces: W10911389) |
|
$ 335.39 |
