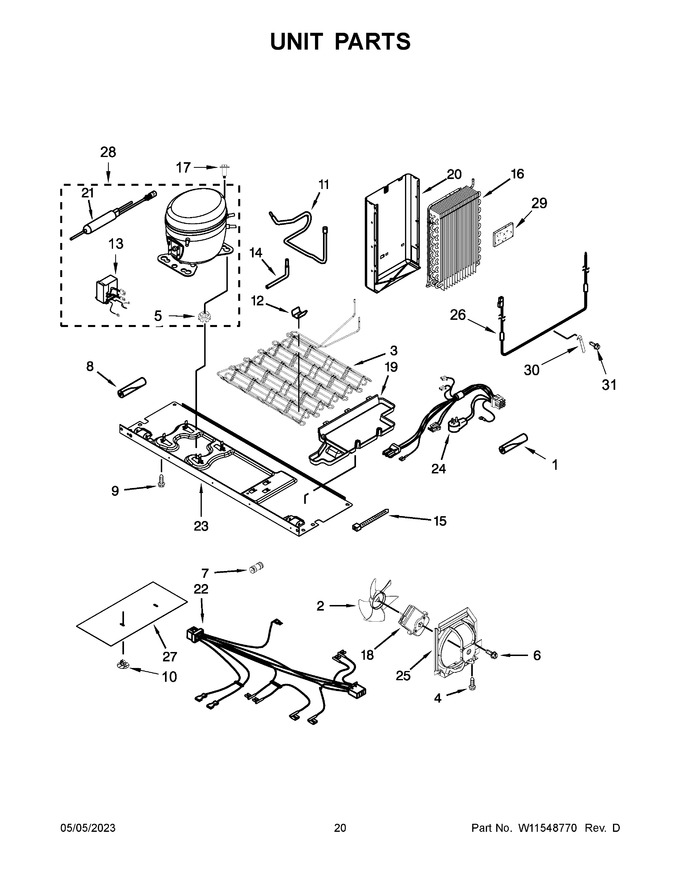

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11505165 | Sleeve (Replaces: W11449167) |
|
- | |||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11760073 | Condenser (also Order The Following Lokring Parts) (Replaces: W10276899) |
|
$ 168.80 | |||||
| 4 | W10142255 | Screw |
|
- | |||||
| 5 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.55 | ||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.61 | ||||
| 7 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 69.57 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 9 | 3400524 | Screw (Replaces: W10142287) |
|
$ 13.28 | |||||
| 10 | W10815861 | Clip, Bottom Cover |
|
$ 15.80 | |||||
| 11 | W11505003 | Tube, Suction |
|
- | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | W11567494 | Assembly, Inverter Box (Replaces: W11367579) |
|
$ 392.10 | |||||
| 14 | W11558176 | Tube, Process (Replaces: W11509632) |
|
- | |||||
| 15 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 16 | W11566897 | Evaporator (also Order The Following Lokring Parts) (Replaces: W11357920) |
|
$ 222.30 | |||||
| 17 | W11417341 | Screw |
|
$ 14.07 | |||||
| 18 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 185.05 | ||||
| 19 | W11298166 | Tray, Evaporator (includes Gasket) (Replaces: W10703216) |
|
- | |||||
| 20 | W11400742 | Heat Shield |
|
- | |||||
| 21 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 22 | W11700341 | Assembly, Unit Wire (Replaces: W11229025) |
|
$ 102.07 | |||||
| 23 | W10680691 | Baseplate |
|
- | |||||
| 24 | WPW10242407 | Cord, Power (Replaces: W10242407) |
|
$ 80.97 | |||||
| 25 | WPW10251467 | Baffle, Air (Replaces: W10251467) |
|
$ 84.80 | |||||
| 26 | W11567493 | Heater, Defrost (Replaces: W11355319) |
|
$ 117.39 | |||||
| 27 | W10278140 | Cover, Condenser (bottom) |
|
$ 94.05 | |||||
| 28 | W11557671 | Compressor (also Order The Following Lokring Parts) (Replaces: W11332037) |
|
Immediately | $ 728.13 | ||||
| 29 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 30 | W11807361 | Heat Probe (Replaces: W11553297) |
|
$ 20.12 | |||||
| 31 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 16A | W11504448 | 5/1.8 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 48.58 | ||||
| 16B | W11506620 | 8 Nk Al 00 (suction Line To Evaporator) |
|
Immediately | $ 32.10 | ||||
| 21A | W11504433 | 6/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 29.40 | ||||
| 21B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 43.90 | ||||
| 28A | W11504415 | 8.5/8 Nr Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.89 | ||||
| 28B | W11504431 | 7/5 Nr Ms 00 (discharge Tube To Compressor) |
|
Immediately | $ 27.13 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (process Tube To Compressor) |
|
Immediately | $ 25.88 | ||||
| 3A | W11506623 | 5 Nk Ms 00 (discharge Tube To Condenser) |
|
Immediately | $ 22.00 | ||||
| 3B | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 28.92 | ||||
| NI | NP | Gearcase Motor Housing (refer To Color Variation Parts Page) |
|
- |
