SELECT A DIAGRAM

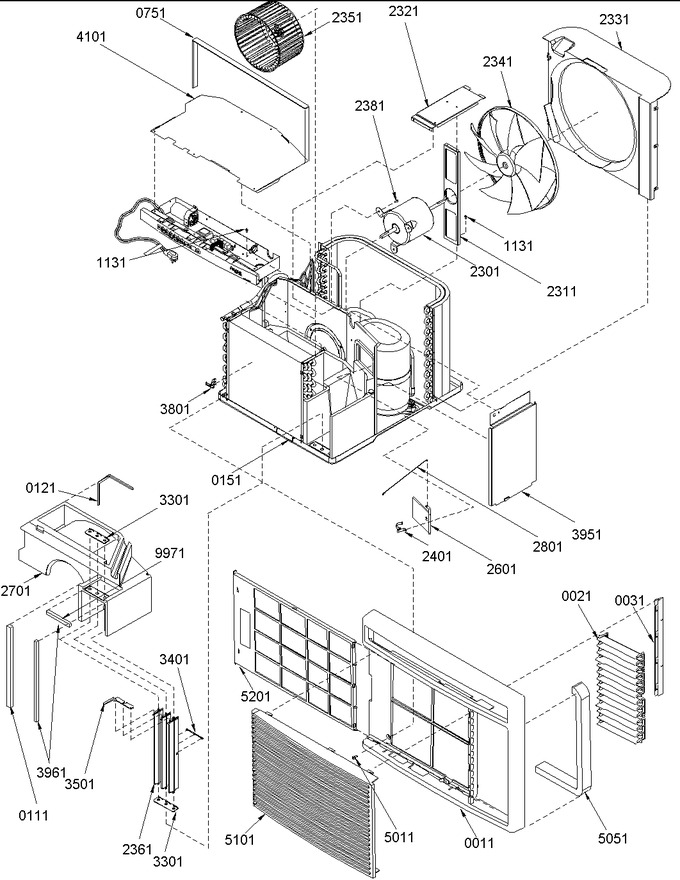

01 - Chassis Assembly


02 - Chassis Assembly


03 - Control Assembly


04 - Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	Y20051701		Front-compact		Appelez-nous	-
21	20052601		Louver, Horizontal		Appelez-nous	-
31	20052701		Housing, Control		Appelez-nous	-
111	10839712		Gasket		Appelez-nous	-
151	20088701		Handle, Basepan		Appelez-nous	-
751	10839710		Gasket		Appelez-nous	-
1111	WP693995		Screw, Sm Stl   (Replaces: M0245203)			Immediately	$ 7.55
1131	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
2301	20059710		Motor		Appelez-nous	-
2311	20053905		Bracket, Fan		Appelez-nous	-
2331	20063401		Shroud, Condenser		Appelez-nous	-
2341	20046501		Fan, Condenser		Appelez-nous	-
2351	20061202		Wheel, Blower		Appelez-nous	-
2361	20111201		Louver, Vert		Appelez-nous	-
2371	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 8.25
2381	WP308544		Screw-tap-r   (Replaces: M0254830)			Immediately	$ 8.30
2401	20055502		Spring, Exh Door		Appelez-nous	-
2601	20051302		Door, Exhaust		Appelez-nous	-
2701	20062703		Scroll		Appelez-nous	-
2801	Y20055606		Actuator, Exh Door		Appelez-nous	-
3301	20051502		Base, Pivot		Appelez-nous	-
3401	20075501		Bar, Lower Stabilizer		Appelez-nous	-
3501	20051404		Gang Bar, Vertical Louver		Appelez-nous	-
3801	20075601		Clip, T`stat		Appelez-nous	-
3951	20068702		Panel, Side (right)		Appelez-nous	-
3961	10839706		Gasket (per Foot)		Appelez-nous	-
4101	20090601		Cover, Top		Appelez-nous	-
5011	M0219730		Screw				$ 7.65
5051	10839701		Gasket 1.25 X .75		Appelez-nous	-
5101	20051801		Insert, Compact		Appelez-nous	-
5201	20064301		Filter, Compact		Appelez-nous	-
9971	10839705		Gasket (1=1ft.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
