SELECT A DIAGRAM

01 - Chassis Assembly


02 - Chassis Assembly


03 - Control Assembly


04 - Outer Case Assembly

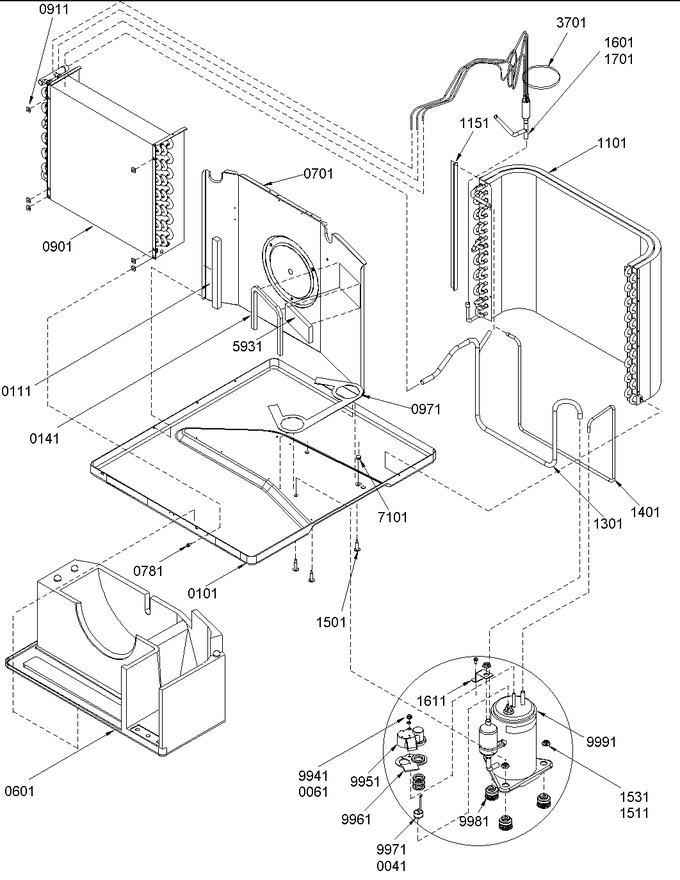

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
61	A3436801		Washer		Appelez-nous	-
101	20070805		Basepan		Appelez-nous	-
111	10839712		Gasket		Appelez-nous	-
601	20062602		Scroll		Appelez-nous	-
701	20062507		Panel, Partition		Appelez-nous	-
781	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
901	20123801		Evap Coil		Appelez-nous	-
911	M0586001		Screw		Appelez-nous	-
1101	Y20125001		Sub 20125001q		Appelez-nous	-
1111	WP693995		Screw, Sm Stl   (Replaces: M0245203)			Immediately	$ 7.55
1131	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
1301	20125601		Suction Weld		Appelez-nous	-
1401	20125401		Discharge Tube		Appelez-nous	-
1501	20109101		Bolt, Shoulder		Appelez-nous	-
1531	20112901		Nut, Palnut		Appelez-nous	-
1601	11108702		Strainer/distributor		Appelez-nous	-
1701	20124501		Cap. Tube Assy		Appelez-nous	-
3701	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
9941	WP776338		Nut, Terminal Cover K   (Replaces: A3436601)				$ 20.32
9951	20120101		Cap,comp Term Cover		Appelez-nous	-
9961	A3436701		Gasket, Terminal		Appelez-nous	-
9981	A3448601		Grommet. Comp		Appelez-nous	-
9991	D6926119		Compressor		Appelez-nous	-
NI	20125101		Sub Cool Tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
