Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10362169 Shelf, Snack Pan   (Replaces: W10362169) Special Order $ 277.28

2 W11164152 Roller, Pan   (Replaces: W10628713) In-Stock Immediately $ 15.74

3 W11746089 Slide, Humidity   (Replaces: W10282883) Special Order $ 30.50

4 W11746089 Housing, Humidity   (Replaces: W10282880) Special Order $ 30.50

5 W10362170 Cover, Assembly Appelez-nous -
6 W10839799 Pan, Snack Appelez-nous -
7 W10839857 Pan, Meat Appelez-nous -
8 W11175807 Axle, Roller   (Replaces: W10628712) In-Stock Immediately $ 17.90

9 W10839854 Pan, Crisper Appelez-nous -
10 W11178176 Shelf Assembly   (Replaces: W10885865) Special Order $ 227.34


    View Diagram in Separate Window     Print Icon   Print Part List

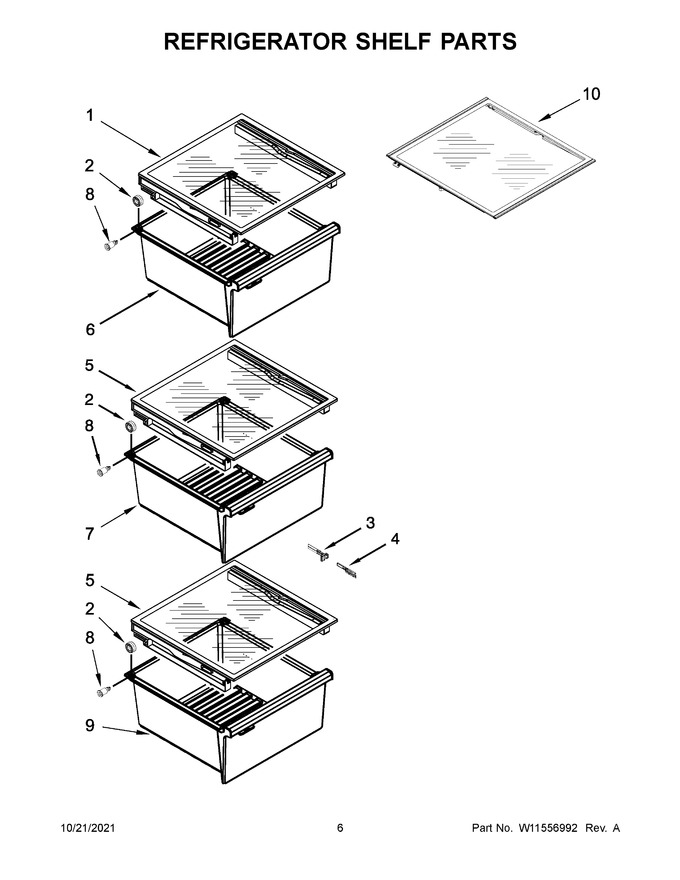

Diagram for MSC21C6MFZ05
