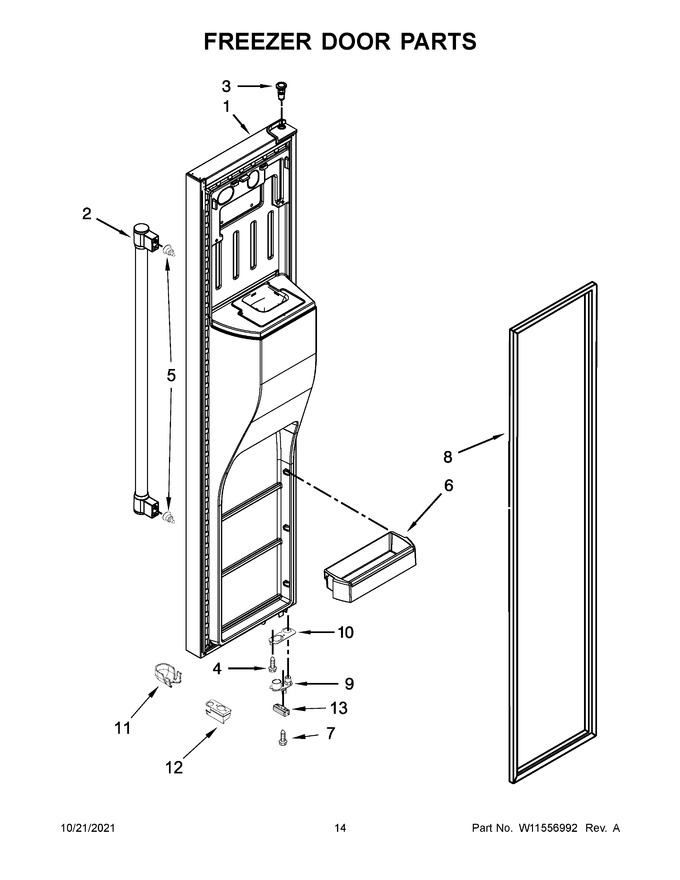

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11566727 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless) (Replaces: W11467359) |
|
$ 1,504.09 | |||||
| 2 | W10879677 | Handle (stainless) (Replaces: W10838130) |
|
Immediately | $ 215.42 | ||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 6 | W10646629 | Door Bin |
|
- | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 8 | WPW10355585 | Gasket, Door (grey) (Replaces: W10249917) |
|
$ 337.27 | |||||
| 9 | WPW10257206 | Closer, Upper Cam Door (grey) (Replaces: W10257206) |
|
Immediately | $ 13.18 | ||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10910405) |
|
$ 69.21 | |||||
| 11 | W10323148 | Cover, Wire |
|
$ 42.25 | |||||
| 12 | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10632062) |
|
$ 7.55 | |||||
| 13 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 |
