Diagram # Part Number Description Series Availability Ships Price Add to Cart
55 043745 Screw Appelez-nous -
56 113937 Screw Appelez-nous -
400 116479 Door Appelez-nous -
403 DD61-00389A Door Gasket   (Replaces: 113151) Special Order $ 5.57

409 112187 Insert Appelez-nous -
410 DG94-01939A Door Handle   (Replaces: 111968) Special Order $ 1,366.85

411 116244 Handle Insert Appelez-nous -
426 117173 Trim Appelez-nous -
427 117173 Trim Appelez-nous -
429 117231 Trim Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

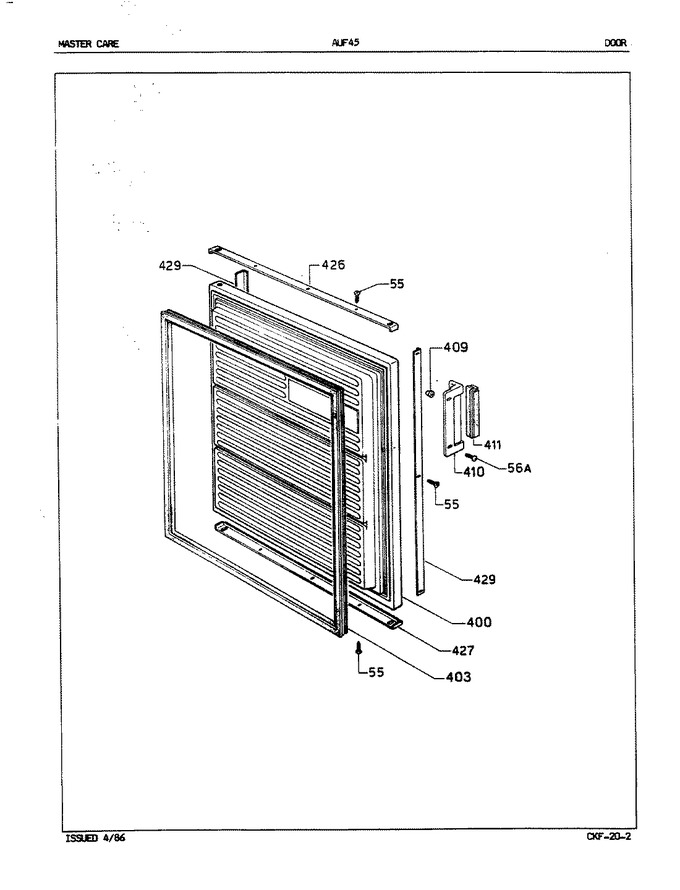

Diagram for AUF45
