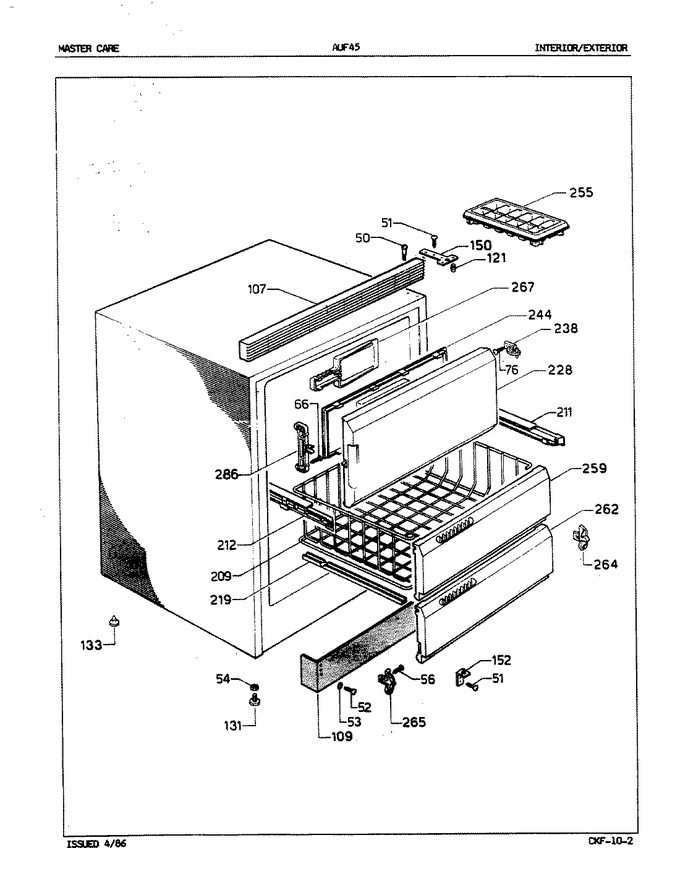

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
50	112701		Screw		Appelez-nous	-
51	042397		Screw		Appelez-nous	-
52	042827		Screw		Appelez-nous	-
53	042712		Lockwasher		Appelez-nous	-
54	044190		Nut		Appelez-nous	-
56	WP59002061		Screw   (Replaces: Y043695)				$ 7.36
66	043691		Screw		Appelez-nous	-
76	042812		Screw		Appelez-nous	-
107	116227-00		Grille   (Replaces: 116227)		Appelez-nous	-
109	116462		Base Plate		Appelez-nous	-
121	113523		Pin		Appelez-nous	-
131	113696		Leveler		Appelez-nous	-
133	089176		Fastener		Appelez-nous	-
150	112177		Hinge		Appelez-nous	-
152	058652		Hinge		Appelez-nous	-
209	113791		Removabl Basket		Appelez-nous	-
211	112587		Rh Basket Guide				$ 16.65
212	112588		Lh Basket Guide				$ 11.10
219	085712		Basket Trim		Appelez-nous	-
228	116247		Evap Door		Appelez-nous	-
238	116481		Evap Door Hinge		Appelez-nous	-
244	115019		Evap Door Liner		Appelez-nous	-
255	WP841180A		Ice Tray   (Replaces: Y059960)			Immediately	$ 43.06
259	114642		Drawer Panel		Appelez-nous	-
262	114642		Drawer Panel		Appelez-nous	-
264	115858		Rh Door Hinge		Appelez-nous	-
265	115856		Lh Door Hinge		Appelez-nous	-
267	112178		Scraper		Appelez-nous	-
286	059557		Door Hook		Appelez-nous	-
