01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

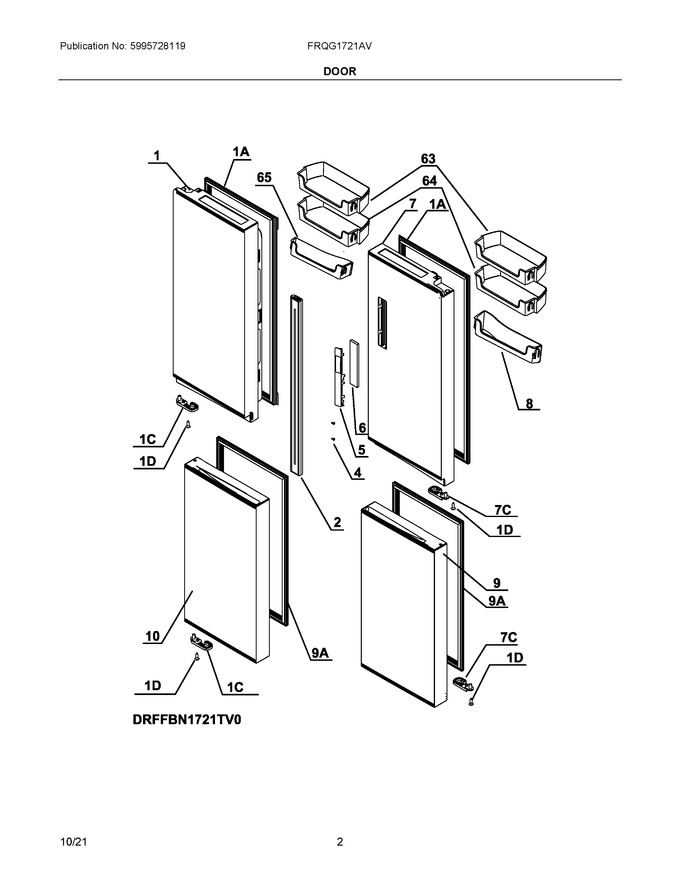

1	5304513731		Door Assembly, Refrigerator, Lh			Immediately	$ 502.24
2	5304513736		Flipper Mullion, Assembly, W/heater			Immediately	$ 169.61
4	5304513738		Screw, (4)		Appelez-nous	-
5	5304513739		Display Panel			Immediately	$ 162.30
6	5304513740		Control, Display Panel			Immediately	$ 235.10
7	5304513741		Door Assembly, Refrigerator, Rh			Immediately	$ 386.38
8	5304513744		Door Bin, Small, Rh				$ 57.33
9	5304513745		Door Assembly, Freezer, Rh				$ 341.60
10	5304513748		Door Assembly, Freezer, Lh			Immediately	$ 432.98
63	5304513750		Door Bin, Middle, (2)			Immediately	$ 86.83
64	5304513751		Door Bin, Large, (2)			Immediately	$ 72.77
65	5304513752		Door Bin, Small, Lh				$ 40.96
1A	5304513732		Gasket, Door, Refrigerator			Immediately	$ 212.02
1C	5304513734		Closer, Door, Lh, Self Locking				$ 12.89
1D	5304513735		Screw, Tapping, Door Closer		Appelez-nous	-
7C	5304513743		Closer, Door, Rh, Self Locking				$ 11.38
9A	5304513746		Gasket, Door, Freezer				$ 82.13
