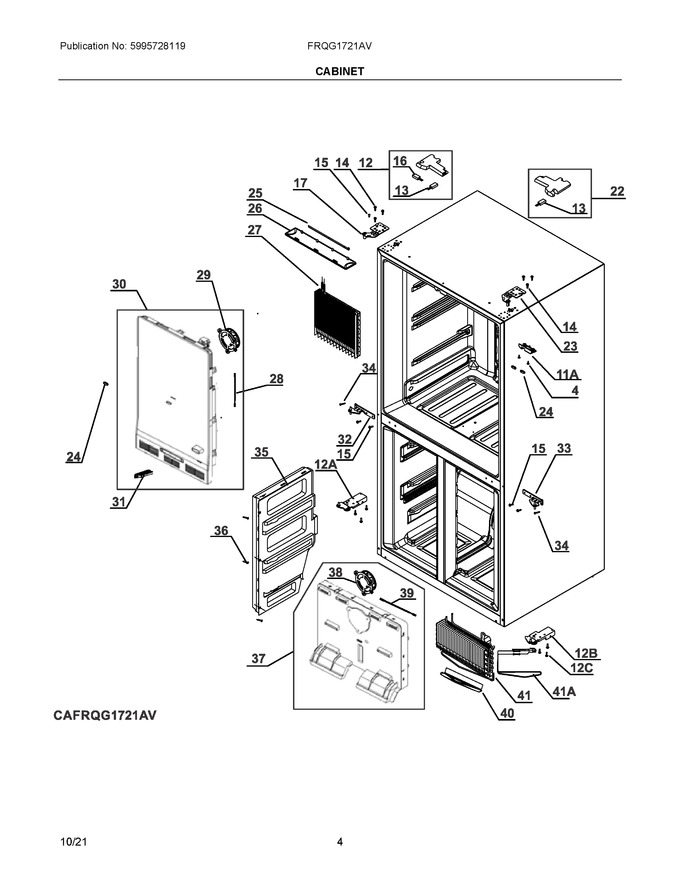

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304513738 | Screw, (4) |
|
- | |||||
| 12 | 5304529359 | Cover Assembly, Upper Hinge, Lh, W/switch-sensor |
|
$ 127.95 | |||||
| 13 | 5304513757 | Switch, Magnet Control |
|
$ 45.50 | |||||
| 14 | 5304513758 | Screw, Tapping-locking |
|
- | |||||
| 15 | 5304492671 | Screw, Assembly, (5) |
|
- | |||||
| 16 | 5304513759 | Sensor, Humidity |
|
$ 100.86 | |||||
| 17 | 5304513760 | Hinge, Lh Upper, Refrigerator |
|
$ 39.69 | |||||
| 22 | 5304525040 | Cover Assembly, Upper Hinge, Rh, W/reed Switch |
|
$ 64.58 | |||||
| 23 | 5304513762 | Hinge, Rh Upper, Refrigerator |
|
$ 39.69 | |||||
| 24 | 5304513763 | Cap, Screw, (3) |
|
$ 7.40 | |||||
| 25 | 5304513764 | Lamp, Led |
|
Immediately | $ 52.23 | ||||
| 26 | 5304513765 | Cover, Led Lamp |
|
$ 29.78 | |||||
| 27 | 5304513766 | Evaporator, Refrigerator, Vertical Fin |
|
$ 137.26 | |||||
| 28 | 5304513767 | Sensor, Temperature |
|
Immediately | $ 39.44 | ||||
| 29 | 5304513768 | Motor, Fan, Refrigerator |
|
Immediately | $ 149.31 | ||||
| 30 | 5304522460 | Air Duct, Assembly, W/motor-sensor |
|
$ 255.56 | |||||
| 31 | 5304513774 | Deodorizer, Assembly |
|
$ 111.99 | |||||
| 32 | 5304513775 | Hinge, Lh Middle, Doors |
|
$ 41.81 | |||||
| 33 | 5304513776 | Hinge, Rh Middle, Doors |
|
$ 51.07 | |||||
| 34 | 5304513777 | Screw, Middle Hinge, (2) |
|
- | |||||
| 35 | 5304513778 | Divider Assembly, Freezer Compt. |
|
- | |||||
| 36 | 5304512553 | Screw, Tapping, (8) |
|
- | |||||
| 37 | 5304529358 | Air Duct, Assembly, Freezer, W/motor-sensor |
|
$ 224.97 | |||||
| 38 | 5304513783 | Motor, Fan, Freezer |
|
Immediately | $ 164.02 | ||||
| 39 | 5304513784 | Sensor, Temperature |
|
$ 34.89 | |||||
| 40 | 5304513785 | Drip Tray, Defrost, Freezer |
|
- | |||||
| 41 | 5304513786 | Evaporator, Freezer |
|
$ 239.64 | |||||
| 11A | 5304513753 | Guide, Mullion |
|
- | |||||
| 12A | 5304513755 | Hinge, Lh Lower, Freezer |
|
$ 46.78 | |||||
| 12B | 5304513756 | Hinge, Rh Lower, Freezer |
|
$ 65.68 | |||||
| 12C | 5304492672 | Screw, Tapping, (6) |
|
$ 7.09 | |||||
| 41A | 5304513787 | Heater, Defrost, Freezer, W/dfrst Sensor |
|
$ 195.66 | |||||
| NIA | 5304515161 | Sensor, Thermistor |
|
Immediately | $ 16.99 |
