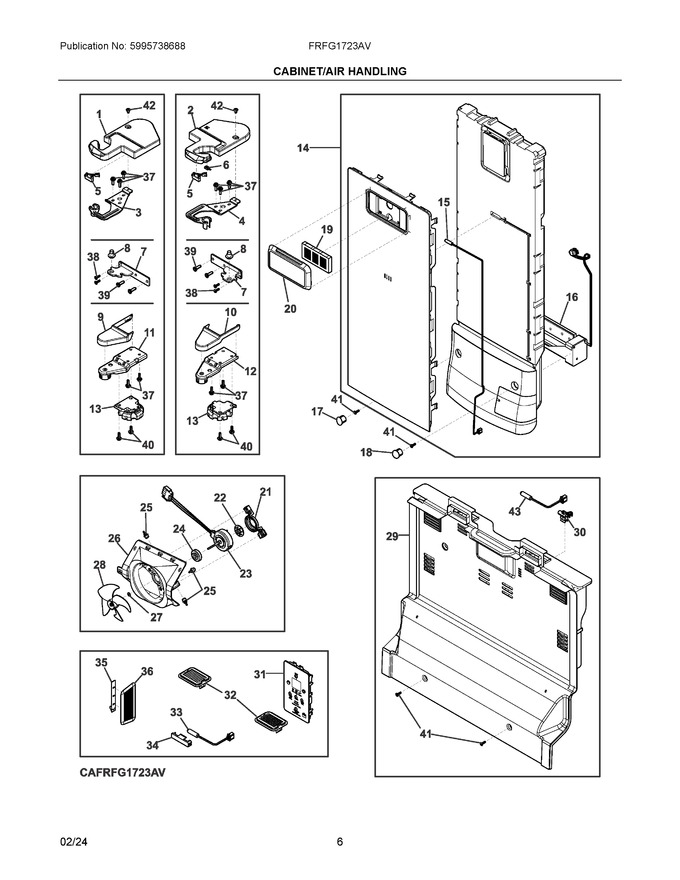

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140018267082 | Cover, Top Hinge, Lh (Replaces: 5304529185) |
|
- | |||||
| 2 | 5304535279 | Cover, Top Hinge, Rh (Replaces: 5304529183) |
|
- | |||||
| 3 | 5304529181 | Hinge, Door, Lh Top |
|
$ 21.91 | |||||
| 4 | 5304529182 | Hinge, Door, Rh Top |
|
$ 27.35 | |||||
| 5 | 5304532559 | Switch, Reed, Door (Replaces: 5304529184) |
|
$ 21.74 | |||||
| 6 | 140217317019 | Sensor, Humidity (Replaces: 809128701) |
|
$ 23.81 | |||||
| 7 | 5304529177 | Hinge, Assembly, Center |
|
$ 31.41 | |||||
| 8 | 5304529178 | Pin, Door Hinge, Center |
|
Immediately | $ 10.95 | ||||
| 9 | 5304529123 | Cover, Foot, Lh Hinge |
|
$ 225.88 | |||||
| 10 | 5304529125 | Cover, Foot, Rh Hinge |
|
$ 10.54 | |||||
| 11 | 5304529126 | Foot Assembly, Anti Tip, Lh |
|
Immediately | $ 37.08 | ||||
| 12 | 5304537479 | Foot Assembly, Anti Tip, Rh (Replaces: 5304529127) |
|
Immediately | $ 21.72 | ||||
| 13 | 5304529124 | Roller Foot, Assembly |
|
$ 31.17 | |||||
| 14 | 5304529130 | Air Tower, Assembly, Fresh Food, W/damper-sensor |
|
$ 166.95 | |||||
| 15 | 5304529132 | Harness, Temperature, Fresh Food |
|
Immediately | $ 24.16 | ||||
| 16 | 5304529131 | Damper Assembly |
|
Immediately | $ 84.77 | ||||
| 17 | 5304529134 | Cover, Screw, Lh, Air Tower |
|
- | |||||
| 18 | 5304529135 | Cover, Screw, Rh, Air Tower |
|
- | |||||
| 19 | PAULTRA2 | Pure Air Ultra 2 Air Filter |
|
Immediately | $ 46.87 | ||||
| 20 | 140050812217 | Cover, Air Filter, Fresh Food (Replaces: 5304519171) |
|
- | |||||
| 21 | 5304519177 | Clip, Retainer |
|
$ 9.27 | |||||
| 22 | 5304519178 | Grommet, Fan Mounting |
|
Immediately | $ 8.43 | ||||
| 23 | 809069207 | Motor, Fan, Frz Evaporator |
|
Immediately | $ 165.31 | ||||
| 24 | 5304529138 | Grommet, Fan |
|
$ 10.11 | |||||
| 25 | 811972801 | Grommet, Evap Fan, Side |
|
$ 7.88 | |||||
| 26 | 811975001 | Shroud, Evaporator Fan |
|
$ 17.02 | |||||
| 27 | 5304519176 | Washer, Slinger, Nylon |
|
$ 3.37 | |||||
| 28 | 811699604 | Blade, Evaporator Fan (Replaces: 811699602) |
|
Immediately | $ 4.66 | ||||
| 29 | 5304529145 | Cover Assembly, Evaporator |
|
$ 92.38 | |||||
| 30 | 811980406 | Clamp, Ntc, Evaporator (Replaces: 811980402) |
|
$ 4.66 | |||||
| 31 | 140040668141 | User Interface, Assembly, Control (Replaces: 5304529137) |
|
$ 151.62 | |||||
| 32 | 5304529136 | Cover, Grid, Air Return |
|
- | |||||
| 33 | 242515406 | Sensor, Reed, Freezer Drawer, Potted |
|
Immediately | $ 96.90 | ||||
| 34 | 807917002 | Cover, Reed Switch, Freezer |
|
- | |||||
| 35 | 5304523011 | Light Board, 3 Led Cluster, 6500k |
|
Immediately | $ 54.28 | ||||
| 36 | 5304519099 | Lens, Led Light |
|
Immediately | $ 13.48 | ||||
| 37 | 811949401 | Screw, Trilob, M5 X 16 |
|
Immediately | $ 5.90 | ||||
| 38 | 5304523029 | Screw, Trilobular, M4 X 12 |
|
- | |||||
| 39 | 807826801 | Screw, Trilob, M6 X 18, Center Hinge |
|
$ 7.58 | |||||
| 40 | 811949409 | Screw, Trilob, M5 X 16 |
|
- | |||||
| 41 | 5304529133 | Screw, Tapping Ph, M4 X 16 |
|
- | |||||
| 42 | 5304519089 | Screw, Self Tapping, M5 X 0.8 |
|
$ 6.74 | |||||
| 43 | 5304520944 | Sensor, Temperature |
|
Immediately | $ 23.04 | ||||
| NI | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.37 | |||||
| NIA | 5304520470 | Seal, Motor Connector, 4 Pin |
|
$ 15.07 |
