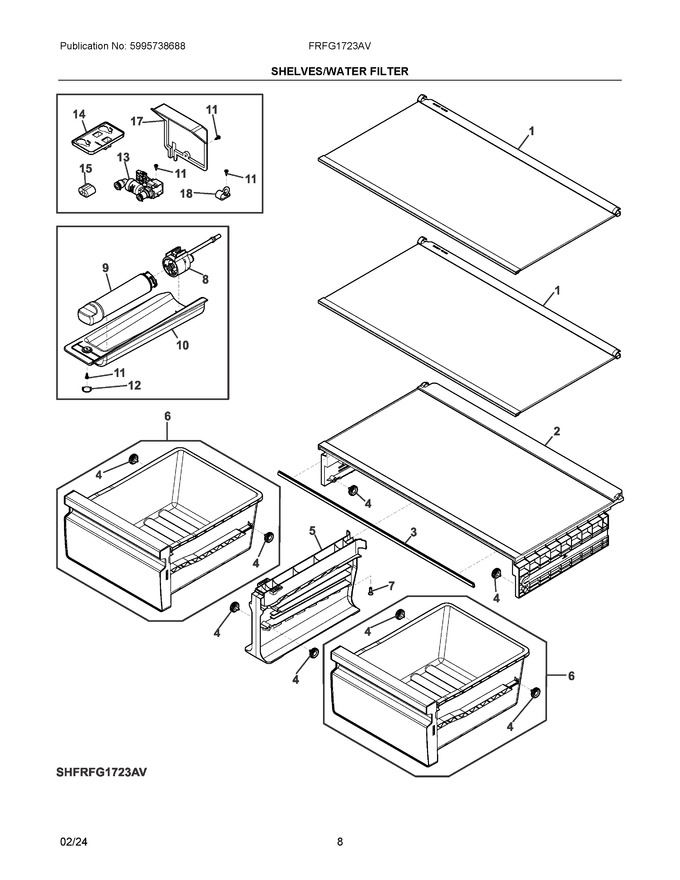

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304529188 | Shelf, Assembly, Glass, W/trim |
|
$ 102.12 | |||||
| 2 | 5304529189 | Cover Assembly, Crisper |
|
Immediately | $ 232.18 | ||||
| 3 | 5304519140 | Gasket, Crisper Cover, Front (Replaces: 5304529192) |
|
$ 26.64 | |||||
| 4 | 5304519124 | Roller, Crisper Glide |
|
$ 18.71 | |||||
| 5 | 5304529190 | Support, Crisper, Center |
|
- | |||||
| 6 | 5304529193 | Drawer Assembly, Crisper, W/rollers |
|
$ 110.87 | |||||
| 7 | 5304529191 | Screw, Phil Slot, 12g X 13mm, Typ B |
|
- | |||||
| 8 | 5304529157 | Manifold, Water Filter, Connector |
|
$ 100.95 | |||||
| 9 | EPTWFU01 | Cs6 Wter Fltr, Frig Ps Ultra Ii |
|
Immediately | $ 75.59 | ||||
| 10 | 5304529186 | Cover, Water Filter |
|
- | |||||
| 11 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.37 | |||||
| 12 | 5304529187 | Cover, Screw, Water Filter |
|
- | |||||
| 13 | 5304529158 | Valve, Inlet, Filter, 1-way |
|
$ 145.98 | |||||
| 14 | 5304529156 | Bracket, Manifold |
|
- | |||||
| 15 | 5304529159 | Grommet, Rear Tube |
|
- | |||||
| 17 | 5304529161 | Cover, Inlet Valve, Rear |
|
- | |||||
| 18 | 240396803 | Clamp, Tube/wiring, 5/16 |
|
$ 8.43 | |||||
| NI | 5304524004 | Cover, Screw Hole, White |
|
Immediately | $ 5.63 | ||||
| NI | 5304519089 | Screw, Self Tapping, M5 X 0.8 |
|
$ 6.74 | |||||
| NIA | 5304529160 | Seal, Foam, Rear Cover |
|
- |
