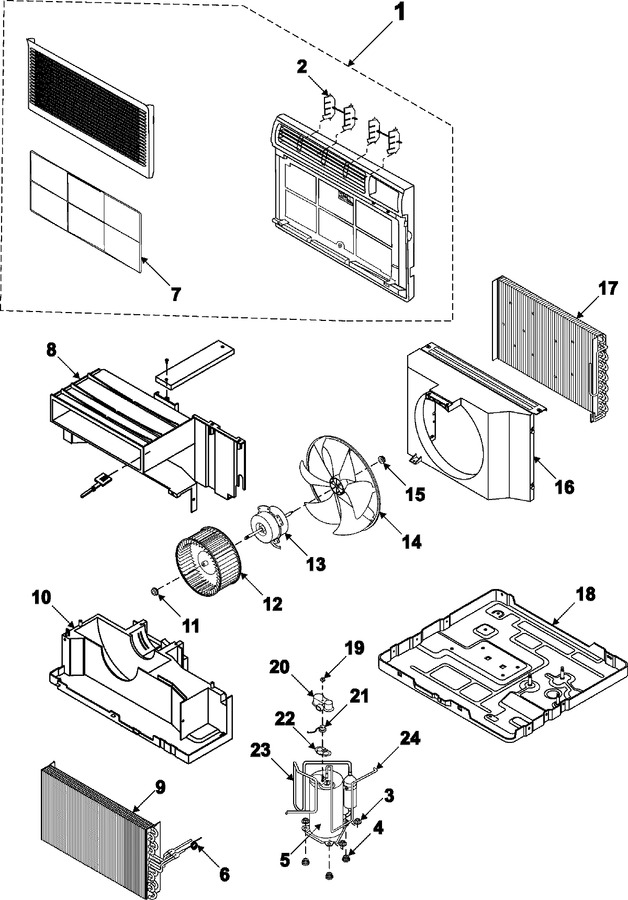

01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB92-00398A | Assy Panel Front |
|
- | |||||
| 2 | DB66-00165A | Link Blade |
|
- | |||||
| 3 | DB60-30028A | Nut-washer |
|
- | |||||
| 4 | DB73-00016A | Grommet-isolator |
|
- | |||||
| 5 | 44A076HU1EB | R/comp:1ph,60hz,115v,r22,7600b |
|
- | |||||
| 6 | DB62-01288A | Tube Capillary |
|
- | |||||
| 7 | DB63-00513A | Guard Filter |
|
- | |||||
| 8 | DB90-00293A | Assy Frame Up |
|
- | |||||
| 9 | DB96-01028A | Assy Evap |
|
- | |||||
| 10 | DB90-00328A | Assy Frame-low |
|
- | |||||
| 11 | DB60-30004A | Nut-flange |
|
- | |||||
| 12 | DB67-00099A | Blower |
|
- | |||||
| 13 | DB31-00149A | Motor Fan |
|
- | |||||
| 14 | DB67-50077A | Fan, Propeller |
|
$ 53.27 | |||||
| 15 | DB60-00437A | Nut-flange (Replaces: DB60-30020A) |
|
Immediately | $ 5.57 | ||||
| 16 | DB90-00337A | Assy Case-cond |
|
- | |||||
| 17 | DB96-01027A | Assy Cond |
|
- | |||||
| 18 | DB90-20212F | Assy Base |
|
- | |||||
| 19 | DB60-30001A | Nut-terminal Cover |
|
- | |||||
| 20 | DB63-10026A | Cover-terminal |
|
- | |||||
| 21 | DB47-20066B | Olp |
|
- | |||||
| 22 | DB63-20003A | Gasket |
|
- | |||||
| 23 | DB62-00484A | Tube Suction |
|
- | |||||
| 24 | DB62-00483A | Tube Discharge |
|
- |
