Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DB93-01633B Assy Control Appelez-nous -
2 DB61-00670A Case Control-up Appelez-nous -
3 DB61-00676A Bracket-control Appelez-nous -
4 DB26-00006G Trans-power (ac115v,50/60hz) Special Order $ 96.33

5 DB61-00669A Case Control-low Appelez-nous -
6 DB93-01492A Assy Pcb Main-rac Appelez-nous -
7 DB63-00511A Cover-control Appelez-nous -
8 2501-001228 Capacitor (oil) Appelez-nous -
9 DB65-00031B Clamper-core Appelez-nous -
10 DB39-00343D Power Cord-ass`y Appelez-nous -
11 2301-001448 C-film,mpe-ppf Appelez-nous -
12 DB93-01364X Assy Remocon Special Order $ 105.49

13 DB92-00395A Assy Panel-control Appelez-nous -
14 DB32-10051D Thermistor Special Order $ 12.60

15 DB93-01493A Assy Pcb Panel-rac Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

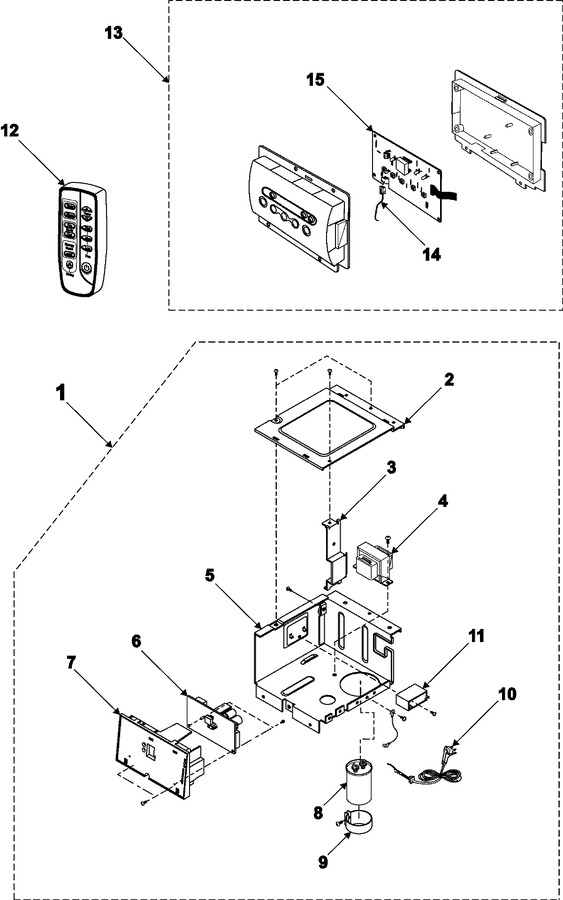

Diagram for AW0891L
