01 - Cover Sheet

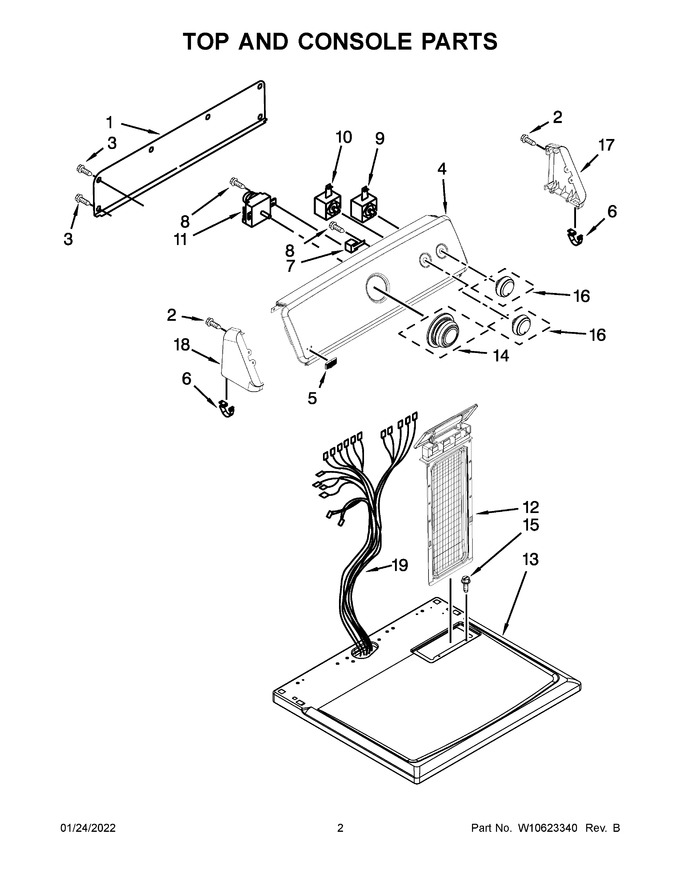

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear (console) |
|
$ 135.31 | |||||
| 2 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W10557256 | Console (white) |
|
$ 140.22 | |||||
| 5 | W10199708 | Badge |
|
$ 53.28 | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 8 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 9 | WPW10117655 | Switch, Push To Start (Replaces: W10117655) |
|
Immediately | $ 85.60 | ||||
| 10 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
$ 131.16 | |||||
| 11 | WPW10185982 | Assembly, Timer (60 Hz.) (Replaces: W10185982) |
|
Immediately | $ 189.78 | ||||
| 12 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 54.63 | ||||
| 13 | WPW10225059 | Top (white) (Replaces: W10225059) |
|
$ 250.69 | |||||
| 14 | W11837899 | Assembly, Knob (grey) (Replaces: W10558463) |
|
Immediately | $ 18.83 | ||||
| 15 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 16 | W11837893 | Knob, Control (grey) (Replaces: W10562155) |
|
$ 18.83 | |||||
| 17 | WPW10193821 | End Cap (right) (white) (Replaces: W10193821) |
|
$ 74.72 | |||||
| 18 | WPW10193824 | End Cap (left) (white) (Replaces: W10193824) |
|
$ 74.39 | |||||
| 19 | W11246728 | Main, Wiring Harness (Replaces: W10565800) |
|
- |
