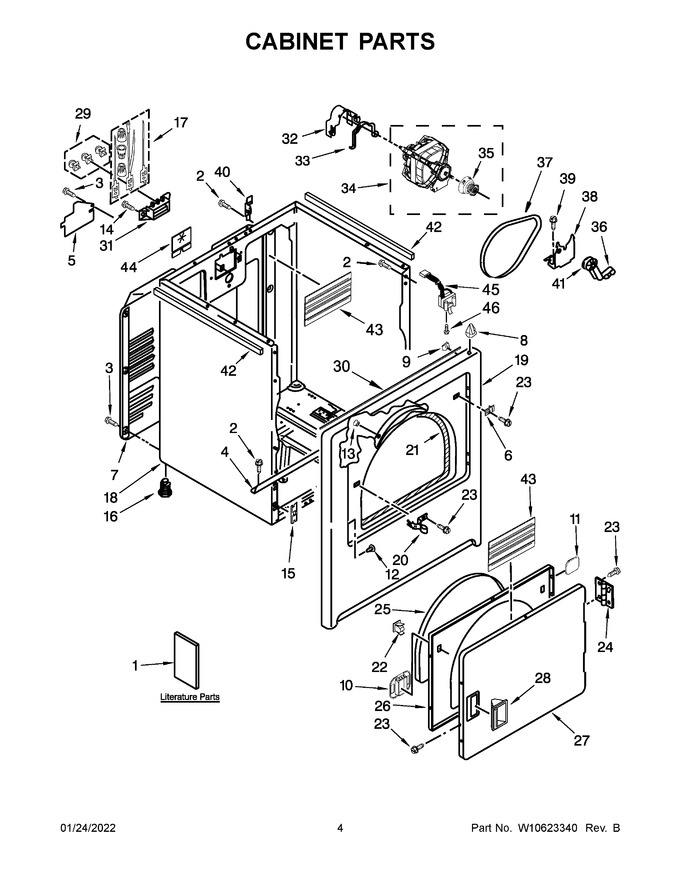

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562354		Use And Care Guide		Appelez-nous	-
2	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	W10236073		Bracket, Cabinet		Appelez-nous	-
5	W11298298		Cover, Terminal Block   (Replaces: W10571619)				$ 84.52
6	W11684591		Plug, Strike   (Replaces: W10567345)			Immediately	$ 7.32
7	280043		Panel, Rear   (Replaces: W10571724)				$ 322.53
8	WP8066092		Lock, Front Top   (Replaces: 8066092)			Immediately	$ 18.43
9	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 10.76
10	WPW10529197		Bezel, Door Catch   (Replaces: W10529197)			Immediately	$ 22.91
11	W11173656		Cover, Door Catch   (Replaces: W10529198)				$ 7.38
12	WP3404413		Plug, Hole (white)   (Replaces: 3404413)			Immediately	$ 7.52
13	279220		Clip, Felt Pad   (Replaces: 685203)				$ 21.20
14	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
15	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 14.71
16	W11025920		Foot, Dryer   (Replaces: W10561321)			Immediately	$ 22.22
17	279318		Terminal, Brass Andtinned (includes Terminal Block Screw Kit)			Immediately	$ 95.44
18	8533643		Cabinet (white)   (Replaces: 8530603)				$ 377.30
19	W10806345		Panel, Front (white)   (Replaces: W10224853)				$ 219.94
20	W11429589		Strike, Door   (Replaces: 3403431)			Immediately	$ 18.89
21	W11035878		Assembly, Seal And Bearing   (Replaces: W10568603)			Immediately	$ 83.41
22	W11429587		Assembly, Door Catch   (Replaces: W10529190)			Immediately	$ 23.90
23	WP488627		Screw   (Replaces: 342055)				$ 7.30
24	WPW10362431		Assembly, Hinge And Pin   (Replaces: W10362431)			Immediately	$ 7.45
25	W10861521		Seal, Door   (Replaces: W10389572)			Immediately	$ 61.07
26	WPW10463967		Door, Inner   (Replaces: W10463967)				$ 207.63
27	W10861227		Door, Front (white)   (Replaces: 3402335)				$ 242.33
28	W11109500		Handle, Door (white)   (Replaces: 8565970)				$ 79.01
29	279393		Screw Kit, Terminal (block)			Immediately	$ 50.09
30	W10316619		Seal, Spill Guard			Immediately	$ 25.39
31	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 21.75
32	WP3404162		Clamp, Motor (with Shield)   (Replaces: 3404162)			Immediately	$ 7.39
33	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 24.26
34	279827		Assembly, Motor   (Replaces: W10396032)			Immediately	$ 195.48
35	WP8066184		Pulley, Motor   (Replaces: 8066184)			Immediately	$ 45.92
36	WP691366		Idler Assembly   (Replaces: 691366)			Immediately	$ 20.22
37	WPW10198086		Belt, Drive   (Replaces: W10198086)			Immediately	$ 51.27
38	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 114.89
39	3400500		Bolt			Immediately	$ 12.64
40	WP8066217		Hinge, Top   (Replaces: 8066217)				$ 7.39
41	WP691362		Assembly, Pulley & Bearing   (Replaces: 691362)				$ 7.76
42	WPW10157932		Seal, Foam   (Replaces: W10316529)			Immediately	$ 7.61
43	W10636378		Pad, Door Handle   (Replaces: W10532676)				$ 62.75
44	W11627518		Pad, Power Cord   (Replaces: W10574733)				$ 20.28
45	WP3406107		Switch, Door   (Replaces: W10569603)			Immediately	$ 28.08
46	WP3395530		Screw   (Replaces: 697773)				$ 7.71
1A	W10185985		Wiring Diagram		Appelez-nous	-
1B	W10562358		Installation Instructions		Appelez-nous	-
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70

    View Diagram in Separate Window       Print Part List
