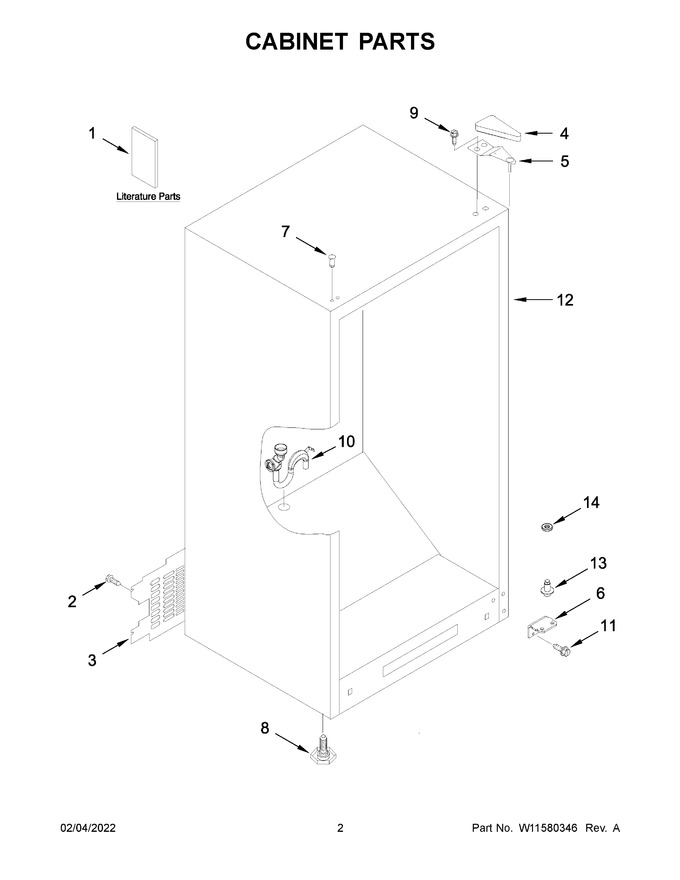

02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11507042 | Owner's Manual |
|
- | |||||
| 2 | 380675105 | Screw |
|
- | |||||
| 3 | W11311062 | Cover, Unit |
|
$ 117.11 | |||||
| 4 | WP2213360 | Cover, Hinge (white) (Replaces: 2213360) |
|
$ 20.19 | |||||
| 5 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 6 | W10574264 | Plate, Bottom Hinge (white) |
|
$ 166.13 | |||||
| 7 | WPW10520304 | Plug, Hole (white) (Replaces: W10520304) |
|
Immediately | $ 19.22 | ||||
| 8 | 382710001 | Leg, Leveler |
|
- | |||||
| 9 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 10 | W11673435 | Tube, Drain (Replaces: W11291514) |
|
Immediately | $ 50.98 | ||||
| 11 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 12 | NP | Trim, Stainless (not Serviced) |
|
- | |||||
| 13 | W11676609 | Pin, Lower Hinge (Replaces: W10574325) |
|
$ 14.89 | |||||
| 14 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 1A | W11357352 | Energy Guide |
|
- | |||||
| 1B | W11510229 | Tech Sheet |
|
- |
