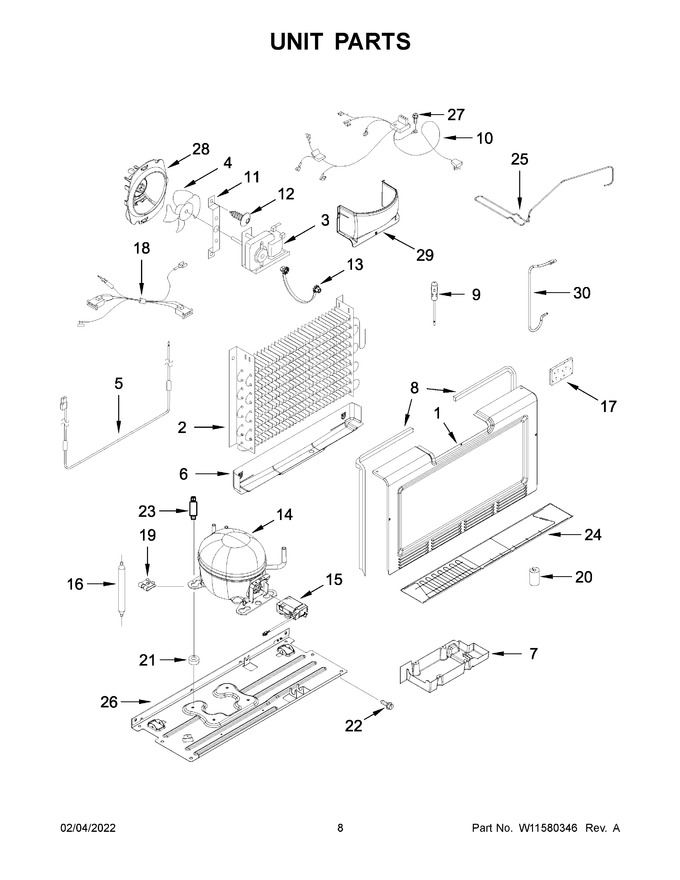

05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11551256 | Cover, Evaporator (Replaces: W10574307) |
|
$ 124.62 | |||||
| 2 | W11572047 | Evaporator (also Order The Following Lokring Parts) (Replaces: W11490402) |
|
Immediately | $ 139.97 | ||||
| 3 | W11499658 | Motor, Fan (Replaces: W11340536) |
|
Immediately | $ 61.40 | ||||
| 4 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 5 | W11562215 | Heater, Defrost (Replaces: W11340898) |
|
Immediately | $ 89.77 | ||||
| 6 | W11562216 | Shield, Heat (Replaces: W11483529) |
|
$ 46.55 | |||||
| 7 | W10574291 | Pan, Evaporator Drain |
|
$ 119.42 | |||||
| 8 | WPW10574368 | Gasket, Evaporator Cover (Replaces: W10574305) |
|
$ 8.75 | |||||
| 9 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 10 | W11454406 | Unit Harness (includes Power Cord) |
|
- | |||||
| 11 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 12 | W11233072 | Screw (Replaces: W11546547) |
|
Immediately | $ 14.72 | ||||
| 13 | W11690160 | Grommet, Fan Motor (Replaces: W10150583) |
|
$ 8.31 | |||||
| 14 | W11578208 | Compressor (also Order The Following Lokring Parts) (Replaces: W11376832) |
|
$ 717.01 | |||||
| 15 | W11676781 | Assembly, Inverter Box (Replaces: W11461102) |
|
$ 420.76 | |||||
| 16 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 17 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 18 | W11741458 | Harness, Evaporator Fan (Replaces: W11435965) |
|
$ 63.92 | |||||
| 19 | W10697017 | Clip, Retaining |
|
- | |||||
| 20 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 21 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.55 | ||||
| 22 | 3400524 | Screw (Replaces: W10142287) |
|
$ 13.28 | |||||
| 23 | W11572046 | Screw (Replaces: W10720825) |
|
- | |||||
| 24 | NP | Trim, Stainless (not Serviced) |
|
- | |||||
| 25 | W10574478 | Tube, Discharge (also Order The Following Lokring Parts) |
|
$ 123.99 | |||||
| 26 | W10574278 | Pan, Compressor |
|
$ 140.77 | |||||
| 27 | 180257102 | Screw |
|
- | |||||
| 28 | W10574469 | Shroud, Evaporator Fan |
|
$ 37.86 | |||||
| 29 | W10574581 | Cover, Evaporator Fan |
|
- | |||||
| 30 | W11501825 | Tube, Suction |
|
$ 70.19 | |||||
| 14A | W11504420 | 8/6 Nr Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.88 | ||||
| 14B | W11504431 | 7/5 Nr Ms 00 (discharge Tube To Compressor) |
|
Immediately | $ 27.13 | ||||
| 14C | W11506622 | 6.35 Nk Al 00 Charging Tube To Compressor |
|
Immediately | $ 33.20 | ||||
| 14D | W11506635 | Tube, Charging (1/4" W/ Schrader Valve) |
|
Immediately | $ 37.03 | ||||
| 16A | W11506623 | 5 Nk Ms 00 (drier To Condenser) |
|
Immediately | $ 22.00 | ||||
| 16B | W11504448 | 5/1.8 Nr Al 00 (capillary Tube To Drier) |
|
Immediately | $ 48.58 | ||||
| 25A | W11504431 | 7/5 Nr Ms 00 (discharge Tube To Compressor) |
|
Immediately | $ 27.13 | ||||
| 25B | W11578570 | 7/4.5 Nr Ms 00 (discharge Tube To Condenser) |
|
Immediately | $ 64.29 | ||||
| 2A | W11504450 | 4/1.8 Nr Ms 00 (capillary Tube To Evaporator) |
|
Immediately | $ 46.52 | ||||
| 2B | W11504420 | 8/6 Nr Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.88 | ||||
| NI | NP | Trim, Stainless (not Serviced) |
|
- |
