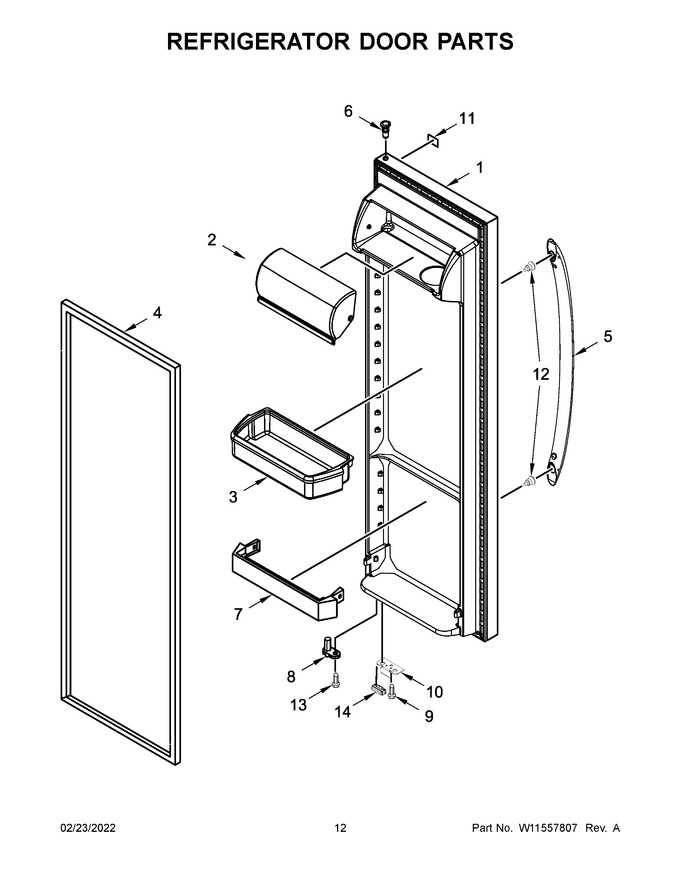

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10912118		Door, Refrigerator (includes Door Gasket) (white)   (Replaces: W10912118)				$ 867.22
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	W11174793		Bin, Door   (Replaces: W11034658)				$ 161.02
4	2159075		Gasket, Door (beige)   (Replaces: W10911412)			Immediately	$ 333.00
5	W11084370		Handle (white)		Appelez-nous	-
6	WP2182181		Thimble   (Replaces: 2200087)				$ 8.15
7	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
8	W11397972		Thimble, Cam   (Replaces: W10900464)				$ 13.79
9	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
10	W11557261		Bracket, Door Stop (black)   (Replaces: W10900463)			Immediately	$ 18.67
11	W10337740		Badge		Appelez-nous	-
12	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
13	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
14	W11687672		Bumper, Door (white)   (Replaces: W10407175)				$ 14.93
14A	W10407187		Bumper, Door (black)				$ 48.34
14B	W11573367		Bumper, Door (grey)   (Replaces: W10407188)			Immediately	$ 23.35
1A	LW10912126		Door, Refrigerator (includes Door Gasket) (black)   (Replaces: W10912126)				$ 847.07
1B	LW10912075		Door, Refrigerator (includes Door Gasket) (stainless)   (Replaces: W10912075)				$ 821.44
4A	2159083		Gasket, Door (black)   (Replaces: W10911422)				$ 251.49
4B	WPW10136734		Gasket, Door (grey)   (Replaces: W10911389)				$ 335.39
5A	W11084369		Handle (black)		Appelez-nous	-
5B	W10899551		Handle (stainless)   (Replaces: W10713676)			Immediately	$ 188.82
