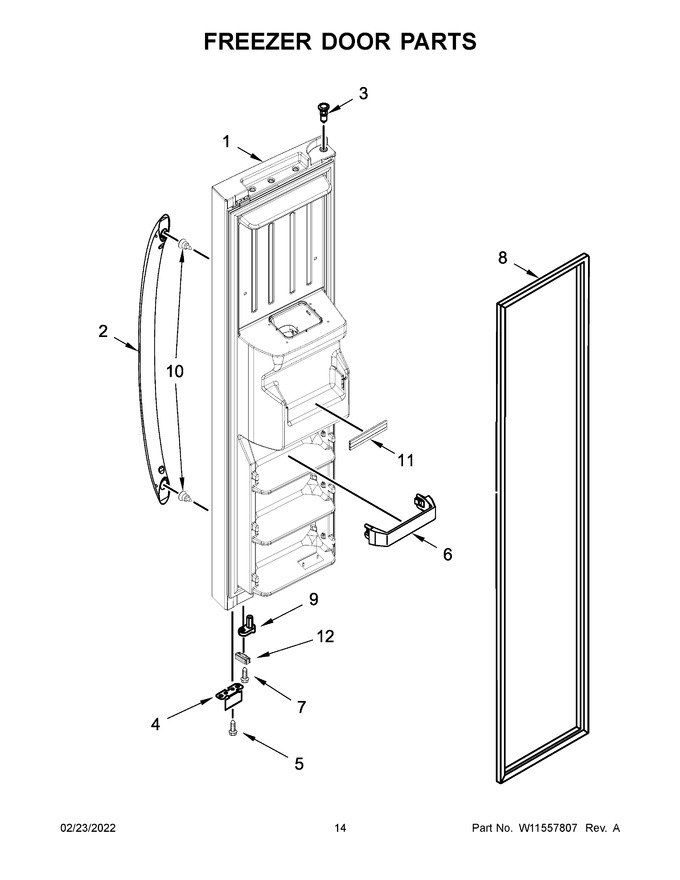

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10911405		Door, Freezer (includes Door Gasket And Dispenser Parts) (white)		Appelez-nous	-
2	W11084370		Handle (white)		Appelez-nous	-
3	WP2182181		Thimble   (Replaces: 2200087)				$ 8.15
4	W11557261		Bracket, Door Stop   (Replaces: W11481757)			Immediately	$ 18.67
5	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
6	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
7	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
8	2159074		Gasket, Door (beige)   (Replaces: W10912123)				$ 325.70
9	W11661926		Thimble, Cam   (Replaces: W10900532)				$ 14.02
10	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
11	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 24.27
12	W11687672		Bumper, Door (white)   (Replaces: W10407175)				$ 14.93
12A	W10407187		Bumper, Door (black)				$ 48.34
12B	W11573367		Bumper, Door (grey)   (Replaces: W10407188)			Immediately	$ 23.35
1A	W10911415		Door, Freezer (includes Door Gasket And Dispenser Parts) (black)		Appelez-nous	-
1B	W10911395		Door, Freezer (includes Door Gasket And Dispenser Parts) (stainless)		Appelez-nous	-
2A	W11084369		Handle (black)		Appelez-nous	-
2B	W10899551		Handle (stainless)   (Replaces: W10713676)			Immediately	$ 188.82
8A	2159082		Gasket, Door (black)   (Replaces: W10912133)				$ 332.49
8B	W10136735		Gasket, Door (grey)   (Replaces: W10912081)				$ 254.84
