Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DB93-02510L Assy Control-d Appelez-nous -
2 DB61-01527A Case Control;h3-p/j,top,sgcc-m Appelez-nous -
3 DB65-10008B Clip-capacitor Appelez-nous -
4 DB32-10051E Thermistor Special Order $ 48.91

4 DB32-10031A Thermistor-stopper Appelez-nous -
5 DB93-03018V Assy Remocon Special Order $ 52.36

6 DB64-00911A Panel Control-e;h3-p/j,top,sea Special Order $ 9.13

7 DB34-00033A Switch Membrane;-,-,-,pe,-,-,4 Special Order $ 25.77

8 DB26-00006J Trans L.v-power;-,ac115v,50/60 Special Order $ 77.45

9 2501-001231 Capacitor (oil) Appelez-nous -
10 DB93-02938E Assy Power Cord Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

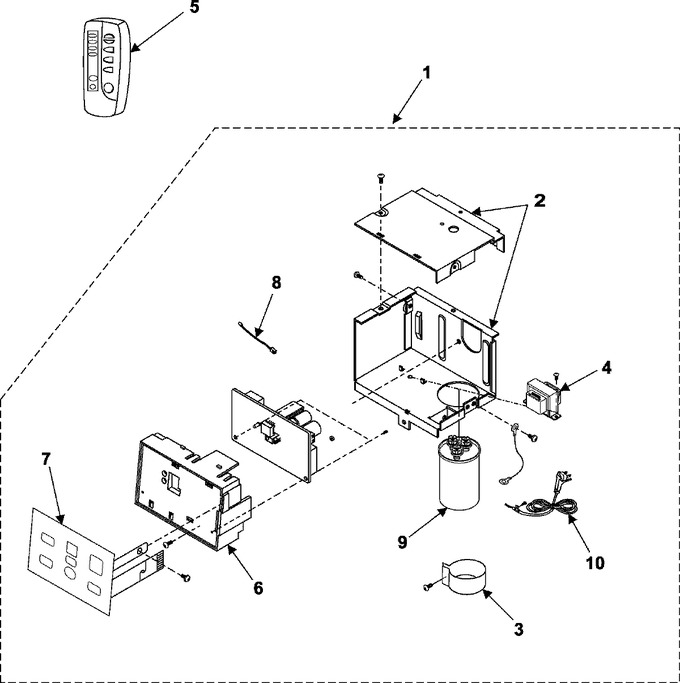

Diagram for AW149CB/XAA
