01 - Chassis Assembly
02 - Control Assembly

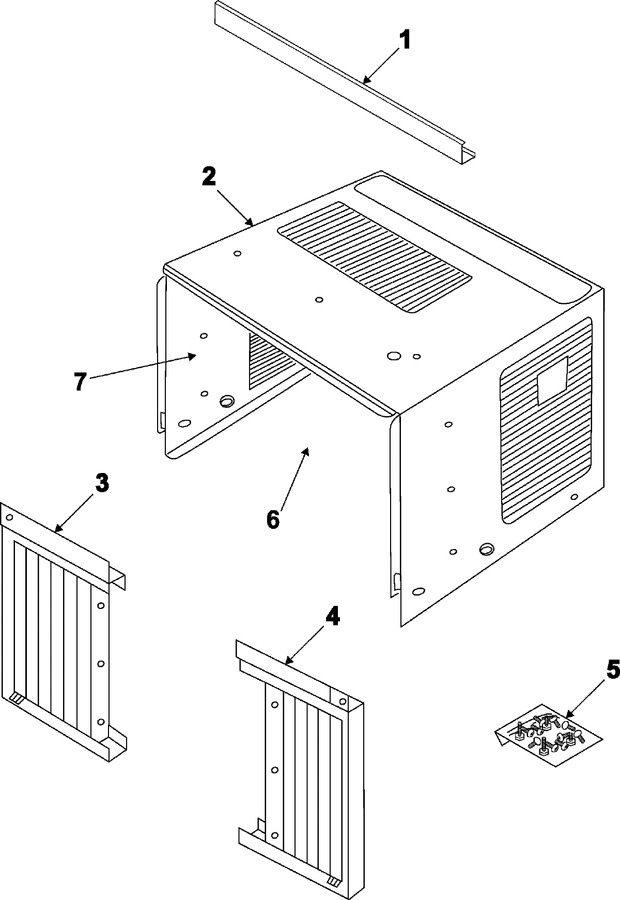

03 - Outer Case Assembly
04 - Supplemental Information
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB64-01020A | Shutter-angle Up;-,hips,t3.0,w |
|
$ 13.12 | |||||
| 2 | DB70-00373C | Plate-cabinet |
|
- | |||||
| 3 | DB92-00109A | Assy Shutter-guard Lf |
|
- | |||||
| 3 | DB64-00285A | Shutter-guard Lf |
|
- | |||||
| 4 | DB92-00108A | Assy Shutter-guard Rh |
|
- | |||||
| 4 | DB64-00284A | Shutter-guard Rh |
|
- | |||||
| 5 | DB97-90014X | Assy-install Screw;h3-pjt,- |
|
- | |||||
| 6 | DB64-00891B | Cabinet-rear |
|
- | |||||
| 7 | DB64-00908B | Cabinet-front |
|
- |
