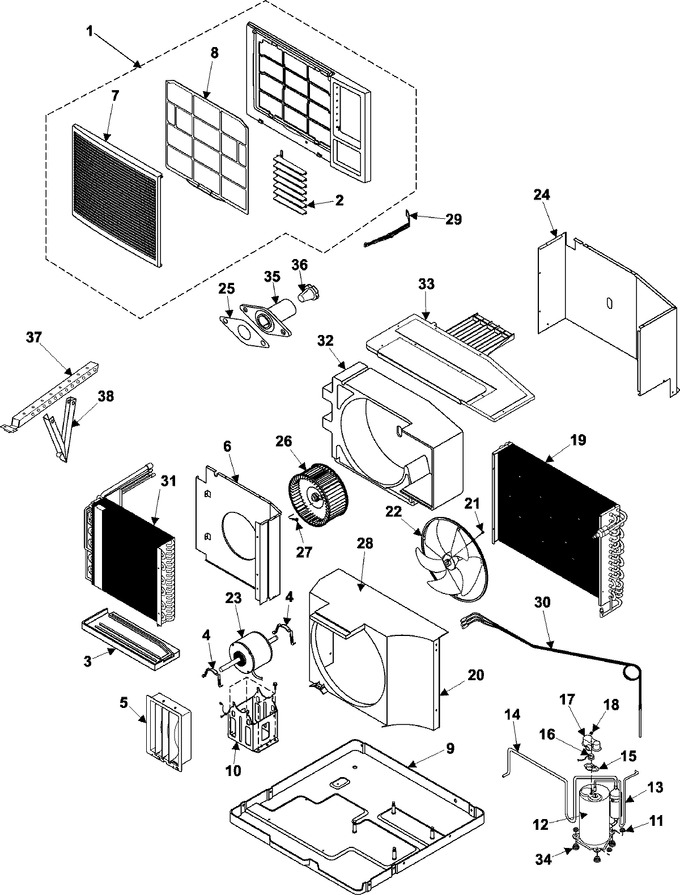

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB92-00067A		Assy Panel-front		Appelez-nous	-
2	DB66-00120A		Blade-h		Appelez-nous	-
3	DB63-40019A		Tray-drain		Appelez-nous	-
4	DB65-10089A		Clip-motor		Appelez-nous	-
5	DB61-60125A		Frame-blade		Appelez-nous	-
6	DB96-00026A		Assy-evap-plate Casing		Appelez-nous	-
7	DB64-00178A		Grille-air Inlet		Appelez-nous	-
7	DB92-00066C		Assy Grille		Appelez-nous	-
8	DB63-00100A		Guard Air-filter		Appelez-nous	-
9	DB90-00304B		Assy Base		Appelez-nous	-
10	DB61-00440A		Mount Motor		Appelez-nous	-
11	DB60-30028A		Nut-washer		Appelez-nous	-
12	Y00000000		See Note Rotary Compressor Currently Unavailablee		Appelez-nous	-
13	DB62-00457B		Tube Discharge		Appelez-nous	-
14	DB62-00518A		Tube Suction		Appelez-nous	-
15	DB63-20002A		Gasket		Appelez-nous	-
16	DB35-00004W		Olp		Appelez-nous	-
17	DB63-10026A		Cover-terminal		Appelez-nous	-
18	Y00000000		See Note Nut-terminal Cover Currently Not Available		Appelez-nous	-
19	DB96-01048A		Assy Cond		Appelez-nous	-
19	DB96-00267A		Assy Tube Evap Out		Appelez-nous	-
20	DB61-00448A		Case Cond		Appelez-nous	-
21	DB60-30018A		Nut-flange		Appelez-nous	-
22	DB67-00047A		Fan, Propeller		Appelez-nous	-
23	DB31-00106A		Motor Fan		Appelez-nous	-
24	DB70-10679A		Plate-partition		Appelez-nous	-
25	DB73-20096A		Rubber-cover Pipe		Appelez-nous	-
26	DB67-00096A		Blower				$ 59.18
27	6021-001056		Nut-hexagon Flange		Appelez-nous	-
28	DB61-00422A		Case Cover		Appelez-nous	-
28	DB90-00026A		Assy-cover-top		Appelez-nous	-
29	DB66-70024A		Lever-damper				$ 50.00
30	DB62-00519A		Tube Capillary		Appelez-nous	-
31	DB96-00267A		Assy Tube Evap Out		Appelez-nous	-
31	DB96-01038A		Assy Evap		Appelez-nous	-
32	DB61-10182A		Case-evap		Appelez-nous	-
33	DB63-10487A		Cover-evap		Appelez-nous	-
33	DB90-40174A		Assy-cover,evap		Appelez-nous	-
34	DB73-00067A		Grommet Isolator		Appelez-nous	-
35	DB94-10009A		Tube-drain				$ 5.72
36	DB63-10365A		Cap				$ 0.85
37	Y00000000		See Note Bracket Install Base Currently Unavailable		Appelez-nous	-
38	Y00000000		See Note Bracket Mounter Currently Unavailable		Appelez-nous	-
