Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DB93-00483A Assy Control-box Appelez-nous -
2 DB61-00417A Case Control-low Appelez-nous -
3 DB61-00418A Case Control-up Sm(m) Appelez-nous -
4 DB39-00344A Power Cord-ass`y Appelez-nous -
5 DB32-10031A Thermistor-stopper Appelez-nous -
5 DB47-20074A Thermostat Special Order $ 92.93

6 2301-001449 C-film,mpe-ppf Appelez-nous -
7 DB64-50138A Knob, Thermostat Special Order $ 4.62

8 DB64-00262C Panel Control-mo Appelez-nous -
9 2501-001237 Capacitor (oil) Appelez-nous -
10 DB65-10008B Clip-capacitor Appelez-nous -
11 DB64-50128A Knob-thermo Appelez-nous -
12 3406-001045 Switch, Rotary (240v) Special Order $ 47.74


    View Diagram in Separate Window     Print Icon   Print Part List

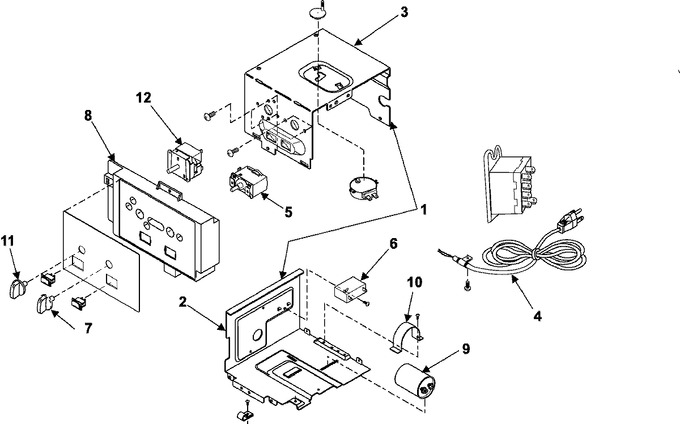

Diagram for AW1800A
