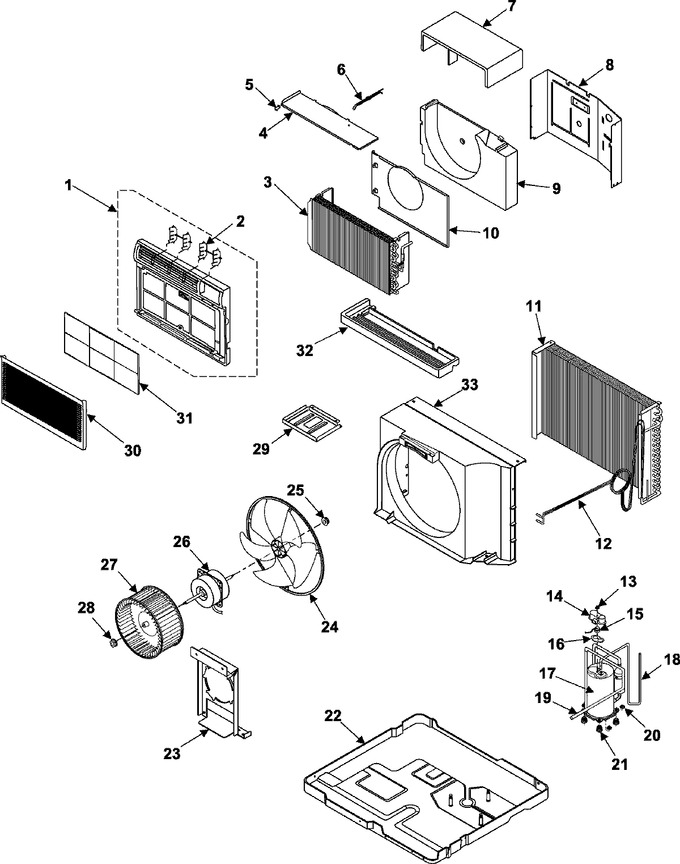

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB92-00396A		Assy Panel Front		Appelez-nous	-
2	DB66-00398A		Link Blade		Appelez-nous	-
3	DB96-01046A		Assy Evap		Appelez-nous	-
4	Y00000000		See Note Bracket-e/cover Currently Unavailable		Appelez-nous	-
5	DB61-00443A		Bracket-panel		Appelez-nous	-
6	DB66-00400A		Lever Damper		Appelez-nous	-
7	DB94-00097A		Assy-case Blower,up		Appelez-nous	-
7	DB61-00439A		Case-blower,up		Appelez-nous	-
8	DB71-00027A		Plate-partition		Appelez-nous	-
9	DB61-00445A		Case-blower,low		Appelez-nous	-
10	DB61-00438A		Case-blower,front		Appelez-nous	-
11	DB96-01037C		Assy Cond		Appelez-nous	-
12	DB96-01970A		Assy Tube-capi		Appelez-nous	-
13	DB60-30001A		Nut-terminal Cover		Appelez-nous	-
14	DB63-10026A		Cover-terminal		Appelez-nous	-
15	DB35-00011C		Protector O/l;69,155,-,mra1204		Appelez-nous	-
16	DB63-20003A		Gasket		Appelez-nous	-
17	48D180IU1EQ		Rotary Compressor, 208-230v 60		Appelez-nous	-
18	DB62-00457B		Tube Discharge		Appelez-nous	-
19	DB62-00456C		Tube Suction		Appelez-nous	-
20	DB60-30028A		Nut-washer		Appelez-nous	-
21	DB73-10001A		Grommet-isolator		Appelez-nous	-
22	DB90-00304B		Assy Base		Appelez-nous	-
23	DB61-00440A		Mount Motor		Appelez-nous	-
24	DB67-00047B		Fan-propeller				$ 56.16
25	Y00000000		See Note Nut-flange Currently Unavailable		Appelez-nous	-
26	DB31-00106A		Motor Fan		Appelez-nous	-
27	DB67-00096A		Blower				$ 59.18
28	Y00000000		See Note Nut-flange Currently Unavailable		Appelez-nous	-
29	DB71-00028A		Plate-reinf.		Appelez-nous	-
30	Y00000000		See Note Grille Air Inlet Currently Unavailable		Appelez-nous	-
31	DB63-00627A		Guard-filter		Appelez-nous	-
32	DB63-00185A		Tray Drain		Appelez-nous	-
33	DB61-00448A		Case Cond		Appelez-nous	-
