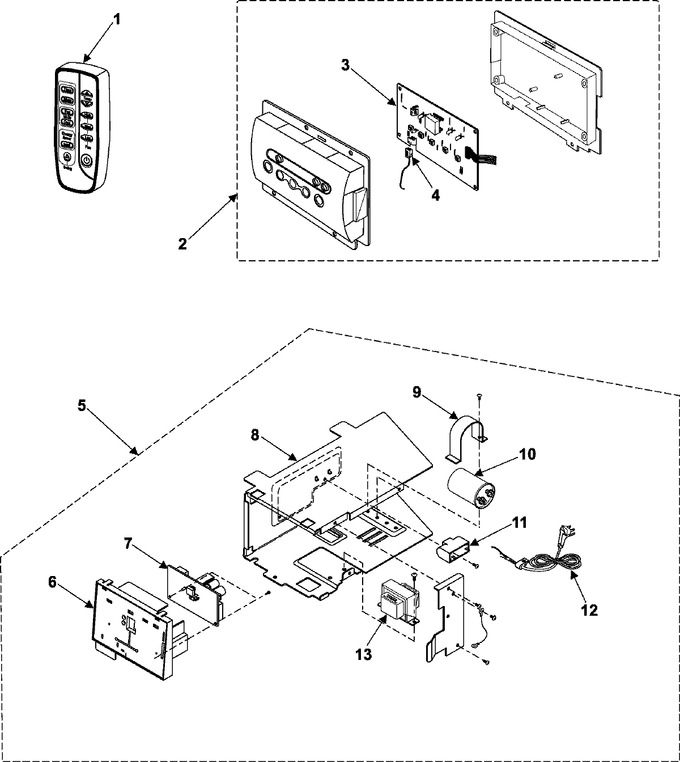

01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
04 - Supplemental Information
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB93-01433F | Assy Remocon |
|
- | |||||
| 2 | DB92-00395A | Assy Panel-control |
|
- | |||||
| 3 | DB93-01493A | Assy Pcb Panel-rac |
|
- | |||||
| 4 | DB32-10031A | Thermistor-stopper |
|
- | |||||
| 4 | DB32-10051D | Thermistor |
|
$ 12.60 | |||||
| 5 | DB93-01670A | Assy Control-box |
|
- | |||||
| 6 | DB63-00657A | Cover-control |
|
- | |||||
| 7 | DB93-01492A | Assy Pcb Main-rac |
|
- | |||||
| 8 | DB61-00715A | Case Control |
|
- | |||||
| 9 | DB65-10008B | Clip-capacitor |
|
- | |||||
| 10 | 2501-001237 | Capacitor (oil) |
|
- | |||||
| 11 | 2301-001449 | C-film,mpe-ppf |
|
- | |||||
| 12 | DB39-00344B | Power Cord-ass`y |
|
- | |||||
| 13 | DB26-00006H | Trans-power |
|
- |
