01 - Chassis Assembly


02 - Control Assembly


03 - Outer Case Assembly


04 - Supplemental Information


05 - Wiring Information

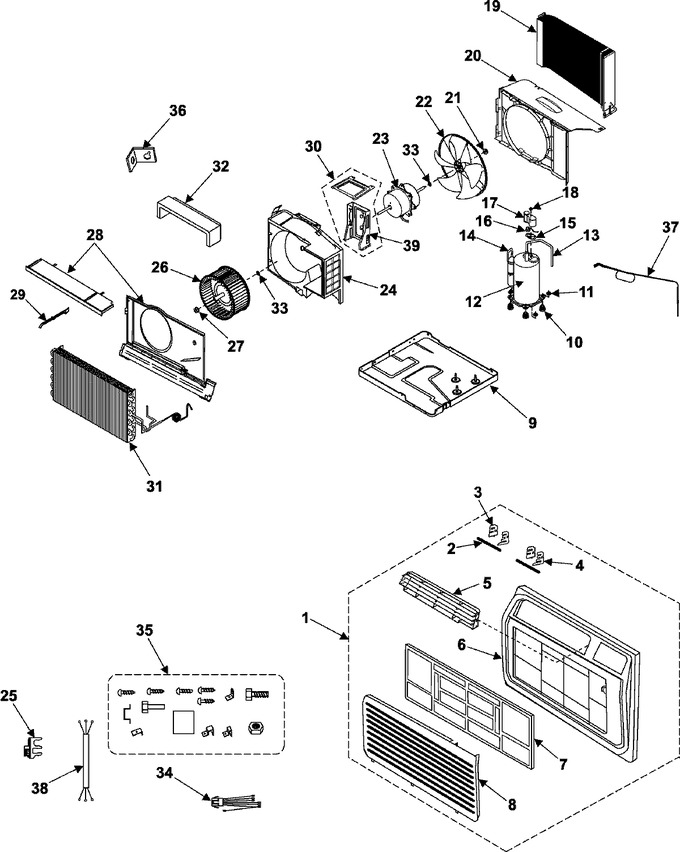

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB92-00519H		Assy Panel Front		Appelez-nous	-
2	DB66-00552A		Link Blade;h3-pjt,top,pp,l131,		Appelez-nous	-
3	DB66-00550A		Blade		Appelez-nous	-
4	DB66-00551A		Blade-v,b;h3-pjt,top,sea,hips,		Appelez-nous	-
5	DB61-01524A		Frame-blade;h3-p/j,top,sea,hip		Appelez-nous	-
6	DB64-00912A		Panel-front;h3-p/j,top,sea,hip		Appelez-nous	-
7	DB61-00191A		Guide-filter		Appelez-nous	-
7	DB63-00807C		Guard-air Filter		Appelez-nous	-
8	DB64-00913A		Grille-air Inlet;h3-p/j,top,se				$ 17.40
9	DB90-01215B		Assy Base;h3-pjt,-		Appelez-nous	-
10	DB63-00815A		Grommet Isolator		Appelez-nous	-
11	Y00000000		See Note Nut-washer Currently Unavailable		Appelez-nous	-
12	48D172IUAEH		Rotary Compressor		Appelez-nous	-
13	DB62-04164A		Tube Discharge		Appelez-nous	-
14	DB62-02234C		Tube Suction		Appelez-nous	-
15	DB63-00765A		Gasket;r/comp,epdm,0.8,-,-,-,6		Appelez-nous	-
16	DB35-00024Y		Relay Protector O/l		Appelez-nous	-
17	DB63-00762A		Cover Terminal;r/comp,ge Noryl		Appelez-nous	-
18	Y00000000		See Note Nut-terminal Cover Currently Unavailable		Appelez-nous	-
19	DB96-02954F		Assy-cond		Appelez-nous	-
20	DB61-01580B		Case Cond		Appelez-nous	-
21	Y00000000		See Note Nut-flange Currently Unavailable		Appelez-nous	-
22	DB67-00047B		Fan-propeller				$ 56.16
23	DB31-00214C		Motor, Fan				$ 164.12
24	DB94-00915A		Assy Partition		Appelez-nous	-
24	DB73-00173A		Rubber-cover Pipe;h3-pjt,top,n		Appelez-nous	-
25	DB32-10031A		Thermistor-stopper		Appelez-nous	-
26	DB67-00096A		Blower				$ 59.18
27	Y00000000		See Note Nut-flange Currently Unavailable		Appelez-nous	-
28	DB94-00916A		Assy-plate Evap Casing		Appelez-nous	-
29	DB66-00553B		Lever-damper		Appelez-nous	-
30	DB90-02571A		Assy Mount Motor		Appelez-nous	-
31	DB96-05830A		Assy Evap		Appelez-nous	-
32	Y00000000		See Note Assy Case-upper Currently Unavailable		Appelez-nous	-
33	6021-001056		Nut-hexagon Flange		Appelez-nous	-
34	DB39-00264C		Connect Wire-motor		Appelez-nous	-
35	DB97-90014X		Assy-install Screw;h3-pjt,-		Appelez-nous	-
36	DB61-30133B		Bracket-install		Appelez-nous	-
37	DB96-05579E		Assy Tube Capillary		Appelez-nous	-
38	DB39-00946A		Connect Wire-pcb-capacitor		Appelez-nous	-
39	DB61-01496A		Mount-motor;h3-p/j,sgcc-m,-,-,		Appelez-nous	-
