SELECT A DIAGRAM

01 - Chassis Assembly


02 - Control Assembly


03 - Outer Case Assembly


04 - Supplemental Information


05 - Wiring Information

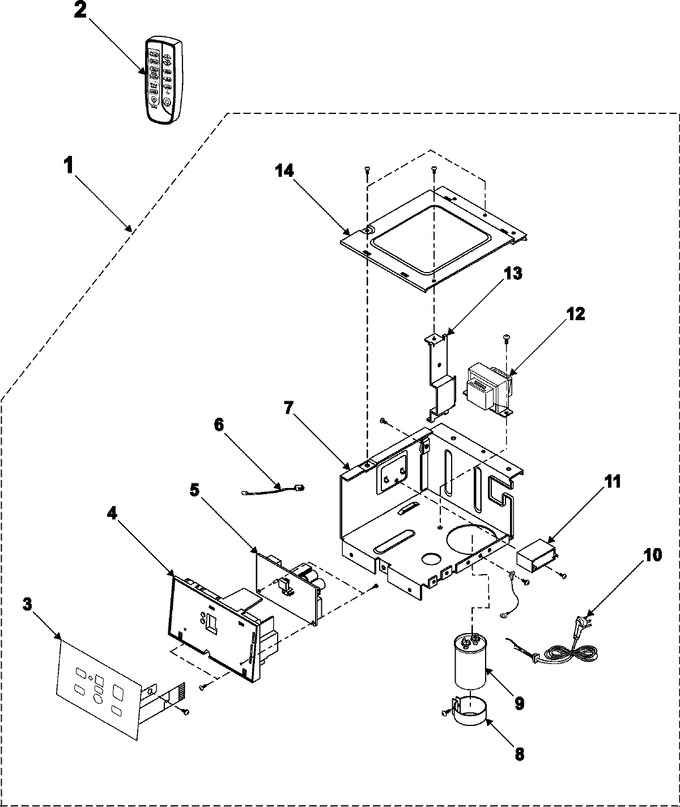

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB93-02510K		Assy-control-d;c/o		Appelez-nous	-
1	DB61-01525A		Bracket-control;h3-p/j,top,sea		Appelez-nous	-
2	DB93-03018V		Assy Remocon				$ 52.36
3	DB34-00033A		Switch Membrane;-,-,-,pe,-,-,4				$ 25.77
4	DB64-00911A		Panel Control-e;h3-p/j,top,sea				$ 9.13
5	DB93-03564B		Assy Pcb Main		Appelez-nous	-
6	DB32-10051E		Thermistor				$ 48.91
7	DB61-01527A		Case Control;h3-p/j,top,sgcc-m		Appelez-nous	-
8	DB65-10008B		Clip-capacitor		Appelez-nous	-
9	2501-001237		Capacitor (oil)		Appelez-nous	-
9	DB71-50015D		Wire-earth C Oil		Appelez-nous	-
10	DB93-02939A		Assy, Power Cord		Appelez-nous	-
11	2301-001449		C-film,mpe-ppf		Appelez-nous	-
12	DB26-00006K		Trans L.v-power;-,ac230v,50/60				$ 89.92
13	DB61-01526A		Bracket-cabinet;h3-p/j,top,sgc		Appelez-nous	-
14	Y00000000		See Note Case-control Upper Currently Unavailable		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
