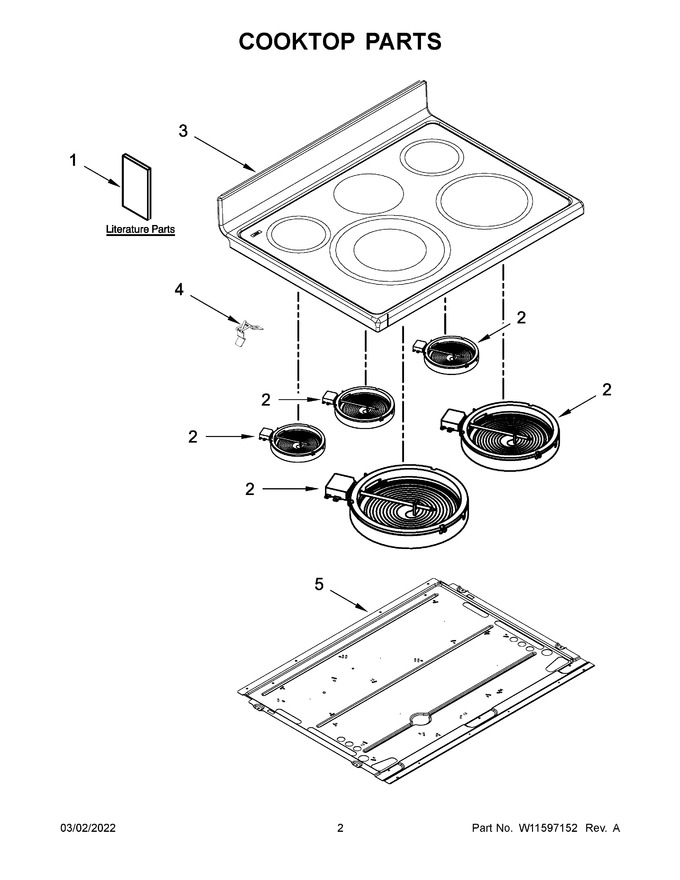

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Internal Oven Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11427490		Owner's Manual		Appelez-nous	-
2	W10823720		Element (3000w) (left Front)   (Replaces: W10187839)			Immediately	$ 336.57
3	W10877558		Cooktop (black)   (Replaces: W10828383)				$ 604.31
4	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
5	WPW10260946		Panel, Element Support   (Replaces: W10260946)				$ 135.10
1A	W11430272		Quick Start Guide		Appelez-nous	-
1B	W11325875		Tech Sheet		Appelez-nous	-
2A	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 145.32
2B	W11517959		Element (3000/1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 134.44
2C	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 182.23
2D	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
NI	W11172531		Harness, Sensor & Locks				$ 119.20
NI	8019P02660		Clip, Wire-wrap Nylon		Appelez-nous	-
NI	W11172428		Harness, Eol (dofsr)		Appelez-nous	-
NI	W11190451		Harness, Cooktop				$ 234.36
NI	W11172427		Harness, Infinite Switch (right)				$ 193.08
NI	8019P01360		Clip, Wire Lock		Appelez-nous	-
NI	7401P15760		Block, Bare Wire Adapter		Appelez-nous	-
NI	W11217794		Harness, Main				$ 239.62
NI	W11217844		Harness, Infinite Switch (left)				$ 202.41
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	7101P02760		Screw, Ground		Appelez-nous	-
