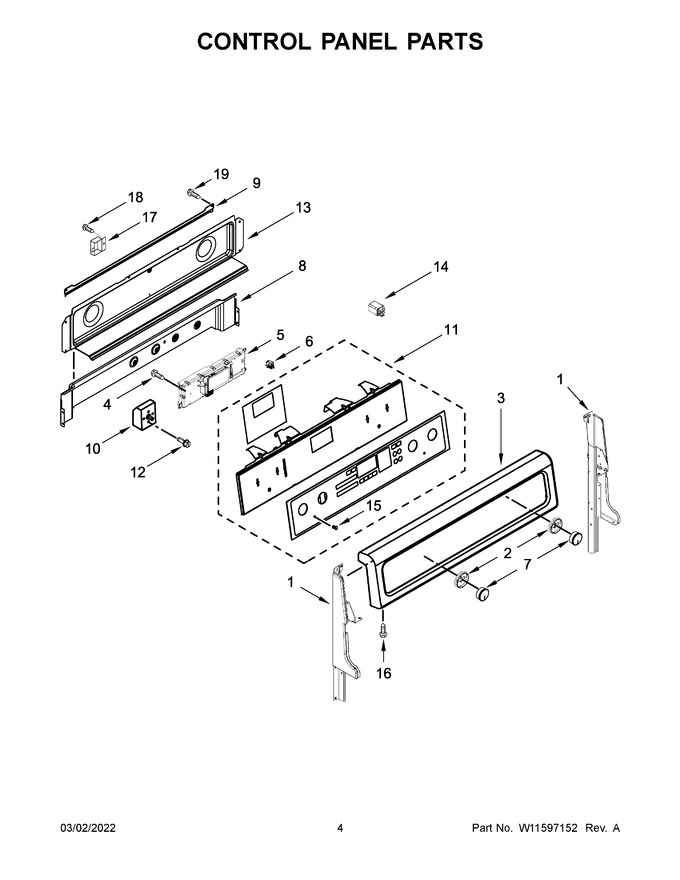

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Backguard (black (left))				$ 92.84
2	W10850042		Bezel (stainless)			Immediately	$ 65.25
3	WPW10318550		Console (stainless)   (Replaces: W10318550)				$ 273.23
4	7101P43460		Screw		Appelez-nous	-
5	W11594156		Control, Maxwell Electronic   (Replaces: W11515091)				$ 382.59
6	7407P13660		Light, Indicator		Appelez-nous	-
7	W11517335		Knob (chrome)   (Replaces: W10850040)			Immediately	$ 21.54
8	W10278697		Shield, Vent			Immediately	$ 183.33
9	WPW10299338		Shield, Wire Cover   (Replaces: W10299338)				$ 96.60
10	W11129442		Switch, Infinite (left Front)   (Replaces: W10437097)			Immediately	$ 109.75
11	W11594155		Assembly, Membrane (including Bracket) (stainless)   (Replaces: W11527484)				$ 314.40
12	W10674068		Screw				$ 24.39
13	W10776098		Cover, Backguard				$ 135.81
14	W10326400		Relay (12v)				$ 70.90
15	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
16	7101P63360		Screw (black)		Appelez-nous	-
17	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
18	7101P33860		Screw		Appelez-nous	-
19	7101P42660		Screw		Appelez-nous	-
10A	W10917724		Switch, Infinite (left Rear)   (Replaces: W10437094)			Immediately	$ 129.35
10B	WPW10312185		Switch, Infinite (right Front)   (Replaces: W10312185)			Immediately	$ 154.38
10C	WP7403P238-60		Switch, Infinite (right Rear)   (Replaces: 7403P37360)			Immediately	$ 74.78
1A	W10319111		Support, Backguard (black (right))				$ 43.80
