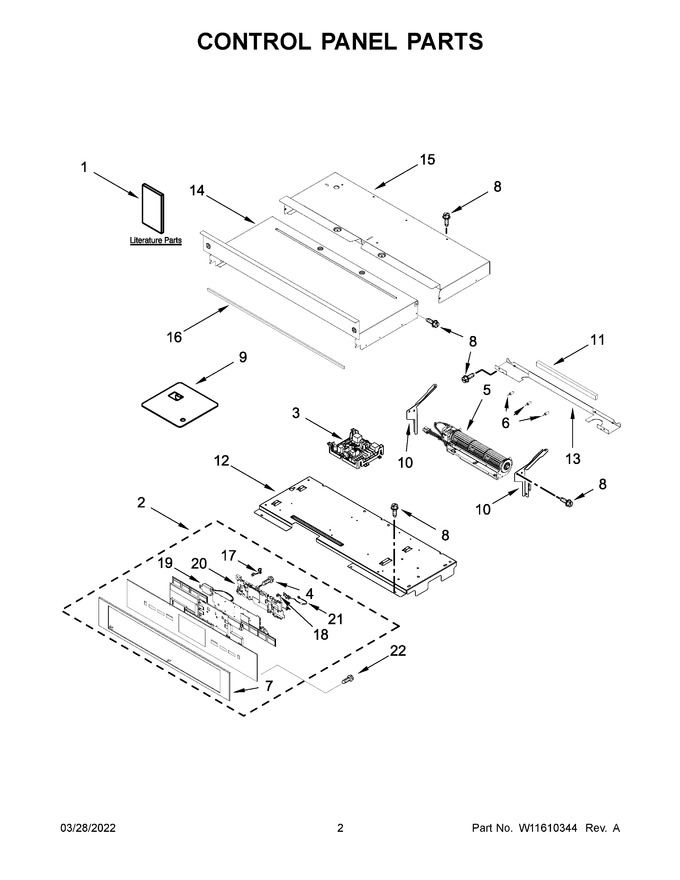

02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11340513 | Owner's Manual |
|
- | |||||
| 2 | W11598157 | Assembly, Control Panel (black) (Replaces: W11301916) |
|
$ 1,734.85 | |||||
| 3 | W11448962 | Appliance Manager, Copernicus (Replaces: W11249218) |
|
Immediately | $ 325.47 | ||||
| 4 | W10489172 | Screw |
|
$ 11.98 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 388.25 | ||||
| 6 | W10351295 | Bumper |
|
$ 22.12 | |||||
| 7 | W11197499 | Skin, Control Panel (stainless) |
|
Immediately | $ 361.78 | ||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W11819353 | Cover, Wifi (Replaces: W11308343) |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W11179509 | Tray, Electronic |
|
- | |||||
| 13 | W11166802 | Divider, Chassis Back |
|
- | |||||
| 14 | W11244465 | Chassis, Cover Top Front 27 |
|
- | |||||
| 15 | W11244459 | Chassis, Cover Top Back 27 |
|
- | |||||
| 16 | W10728475 | Gasket, Rubber |
|
$ 38.13 | |||||
| 17 | W10566973 | Harness, Keypad (left To Center) |
|
$ 82.19 | |||||
| 18 | W10524350 | Harness, Keypad (right To Center) |
|
$ 78.21 | |||||
| 19 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 20 | W10668510 | Housing |
|
$ 105.17 | |||||
| 21 | W10575307 | Jumper Harness, Power Supply |
|
Immediately | $ 173.84 | ||||
| 22 | WPY706189 | Screw (Replaces: W11249635) |
|
Immediately | $ 7.55 | ||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11423731 | Quick Start Guide |
|
- | |||||
| 1B | W11397131 | Tech Sheet |
|
- | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | W11249916 | Harness, Signal |
|
$ 131.12 | |||||
| NI | W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 61.80 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 32.95 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 | |||||
| NI | W11331688 | Harness, Main |
|
$ 390.12 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 23.47 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 |
