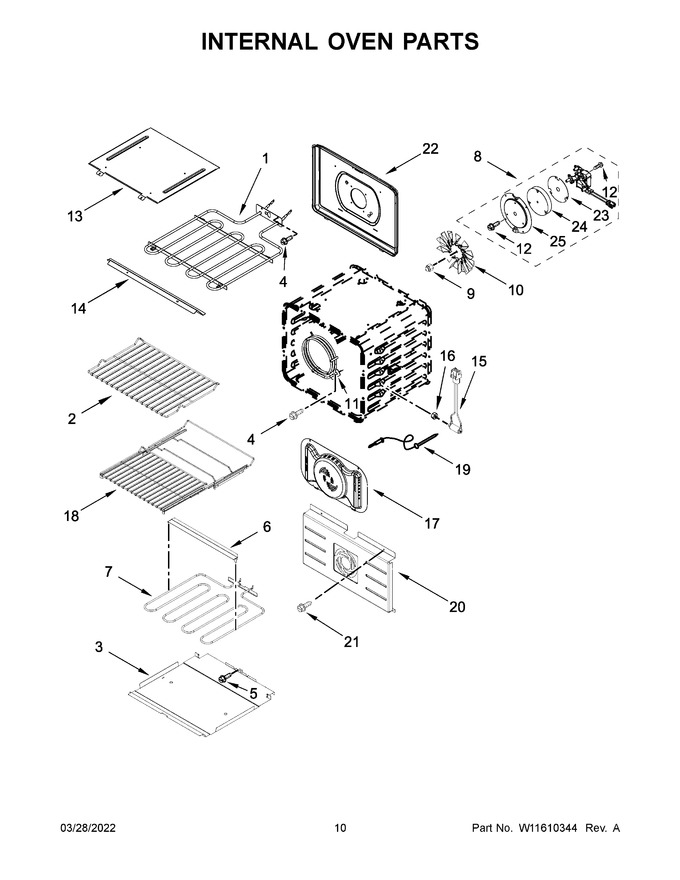

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11598122		Element, Broil   (Replaces: W11238159)				$ 130.69
2	W11242909		Rack, 27" Oven		Appelez-nous	-
3	W10318198		Tray, Hidden Bake				$ 195.83
4	7101P43460		Screw		Appelez-nous	-
5	7101P42660		Screw		Appelez-nous	-
6	W10282957		Crossbar, Hidden Bake Tray				$ 47.47
7	W11545804		Element, Bake   (Replaces: W11292248)			Immediately	$ 102.53
8	W11602628		Convect Motor Assembly   (Replaces: W11244895)				$ 400.44
9	W11548755		Nut, Acorn (lh)   (Replaces: W11433702)				$ 15.38
10	W11548753		Blade, Fan   (Replaces: W11425715)			Immediately	$ 157.63
11	W11678579		Element, Convection   (Replaces: W10546519)			Immediately	$ 121.00
12	W10850807		Screw   (Replaces: W10720084)				$ 7.77
13	W11598121		Reflector, Broil   (Replaces: W11235537)				$ 62.19
14	W10588737		Shield, Broil Front				$ 105.40
15	W11821374		Jack, Meat Probe   (Replaces: W11252826)				$ 77.18
16	W11231343		Nut, Locking   (Replaces: W11033111)				$ 13.47
17	W11241587		Baffle, Bow Tie   (Replaces: W11192519)				$ 240.50
18	W11256306		Rack, 27" Sliding				$ 220.49
19	WP9755542		Probe, Temperature   (Replaces: 9755542)			Immediately	$ 92.12
20	W10521808		Cover, Baffle				$ 242.06
21	W10739592		Screw		Appelez-nous	-
22	W11198518		Back, 27" Cavity Baffle Bowtie		Appelez-nous	-
23	W11602629		Plate, Convect Motor   (Replaces: W11251715)		Appelez-nous	-
24	W11706806		Insulation, Convect Motor   (Replaces: W11251716)		Appelez-nous	-
25	W11602630		Cover, Convect Plate   (Replaces: W11235449)		Appelez-nous	-
