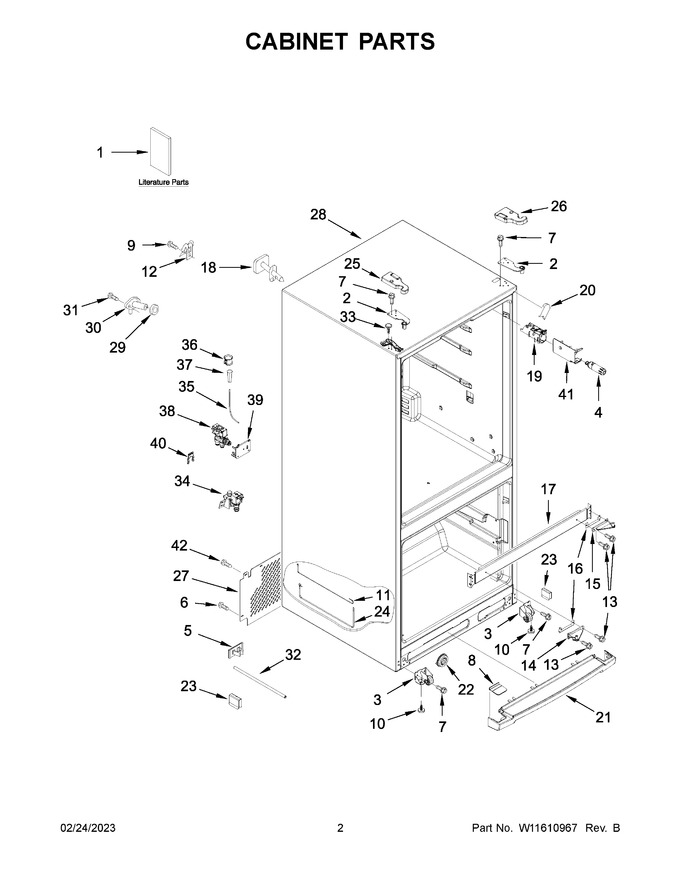

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11511794 | Tech Sheet |
|
- | |||||
| 2 | W10546298 | Hinge, Top (left Hand) |
|
$ 70.15 | |||||
| 3 | WPW10359256 | Roller, Front (left Hand) (Replaces: W10359256) |
|
Immediately | $ 51.83 | ||||
| 4 | EDR1RXD1B | Filter, Water (Replaces: W10735398) |
|
Immediately | $ 49.99 | ||||
| 5 | W11501419 | Clip, Tube (Replaces: W10352217) |
|
Immediately | $ 12.10 | ||||
| 6 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 8.28 | ||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 8 | WPW10353932 | Cover, Toe Grille (grey) (Replaces: W10353932) |
|
$ 85.50 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 10 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 11 | W11195038 | Tube, Filter Inlet (Replaces: W10740689) |
|
Immediately | $ 126.69 | ||||
| 12 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 22.12 | |||||
| 13 | W10336489 | Screw |
|
$ 15.05 | |||||
| 14 | W10770878 | Hinge, Center (left Hand) |
|
Immediately | $ 82.30 | ||||
| 15 | W11417064 | Hinge, Center (right Hand) (Replaces: W10770877) |
|
Immediately | $ 60.73 | ||||
| 16 | WPW10450363 | Shim, Center Hinge (Replaces: W10450363) |
|
Immediately | $ 25.34 | ||||
| 17 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 18 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 19 | W10844267 | Housing, Water Filter (Replaces: W10817430) |
|
Immediately | $ 142.29 | ||||
| 20 | W11219642 | Filler, Corner (grey) (Replaces: W11189126) |
|
Immediately | $ 12.85 | ||||
| 21 | WPW10353935 | Grille (grey) (Replaces: W10353935) |
|
Immediately | $ 103.32 | ||||
| 22 | W10331226 | Drum, Toe Grille |
|
$ 47.42 | |||||
| 23 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 11.53 | |||||
| 24 | W10801011 | Tube, Filter Outlet (Replaces: W10667756) |
|
Immediately | $ 136.92 | ||||
| 25 | W10465768 | Cover, Hinge (left Hand (grey)) |
|
$ 20.53 | |||||
| 26 | W10465767 | Cover, Hinge (right Hand (grey)) |
|
Immediately | $ 21.46 | ||||
| 27 | W11700600 | Cover, Unit (Replaces: W11407731) |
|
Immediately | $ 62.81 | ||||
| 28 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 29 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 30 | W11292468 | Fitting, Water Tube (Replaces: W11249272) |
|
Immediately | $ 163.96 | ||||
| 31 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 32 | WPW10463317 | Tube, Cabinet Water (Replaces: W10463317) |
|
$ 134.67 | |||||
| 33 | WPW10520307 | Plug, Hole (grey) (Replaces: W10520307) |
|
Immediately | $ 7.55 | ||||
| 34 | WPW10238100 | Valve, Inlet (Replaces: W10498992) |
|
Immediately | $ 210.55 | ||||
| 35 | WPW10496649 | Tube, Water (Replaces: W10496649) |
|
$ 123.33 | |||||
| 36 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 65.90 | |||||
| 37 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 8.23 | |||||
| 38 | WPW10279866 | Assembly, Dual Valve (Replaces: W10279866) |
|
Immediately | $ 138.28 | ||||
| 39 | W10847867 | Bracket, Water Valve (Replaces: W10237915) |
|
$ 80.75 | |||||
| 40 | W11678575 | Locking Ring (5/16) (Replaces: W11175631) |
|
$ 14.90 | |||||
| 41 | WPW10306392 | Cover, Water Filter (Replaces: W10306392) |
|
$ 106.06 | |||||
| 42 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 1A | W11112387 | Energy Guide |
|
- | |||||
| 1B | W11592073 | Use And Care Guide |
|
- | |||||
| 1C | 2225623 | Icemaker Service Sheet |
|
- | |||||
| 2A | W11573371 | Hinge, Top (right Hand) (Replaces: W10546299) |
|
Immediately | $ 24.87 | ||||
| 3A | WPW10359255 | Roller, Front (right Hand) (Replaces: W10359255) |
|
Immediately | $ 100.64 | ||||
| 40A | W11676611 | Locking Ring (1/4) (Replaces: W11175632) |
|
$ 14.89 |
