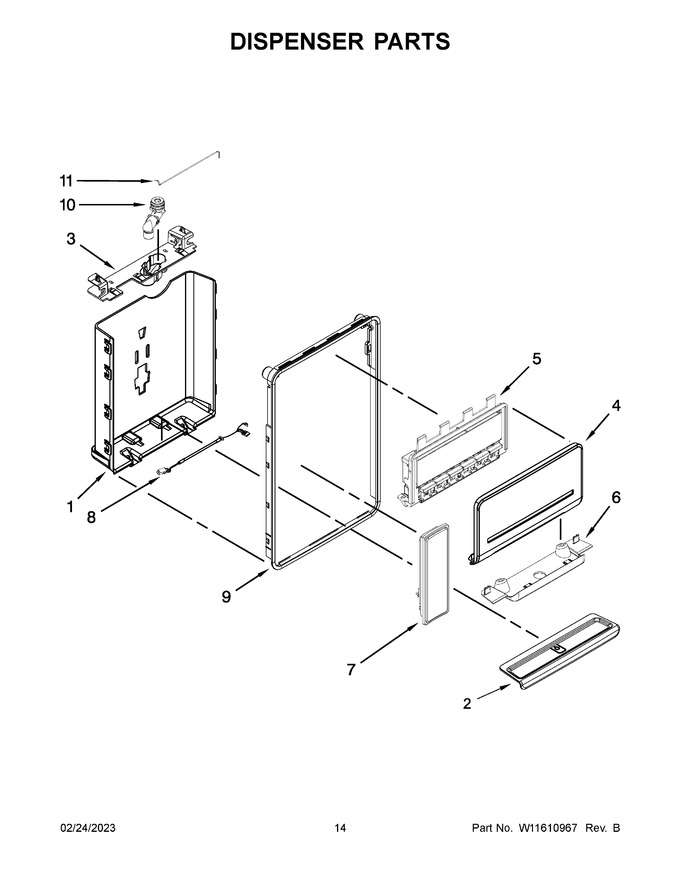

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | WPW10356019 | Tray, Drip (grey) (Replaces: W10356019) |
|
Immediately | $ 58.09 | ||||
| 3 | W11616802 | Separator (Replaces: W10300437) |
|
$ 20.73 | |||||
| 4 | W10424427 | Fascia (silver Mirror) |
|
Immediately | $ 153.37 | ||||
| 5 | W11655739 | Assembly, User Interface (Replaces: W11501603) |
|
$ 333.78 | |||||
| 6 | W10356029 | Cover, Separator (chromium Frost) |
|
$ 46.24 | |||||
| 7 | W11715936 | Assembly, Pad (grey) (Replaces: W10433548) |
|
$ 149.25 | |||||
| 8 | W10735841 | Assembly, Dispenser Wire |
|
$ 152.20 | |||||
| 9 | W10356017 | Ring, Trim |
|
Immediately | $ 57.31 | ||||
| 10 | WP2305235 | Assembly, Spigot (Replaces: 2305235) |
|
$ 147.07 | |||||
| 11 | W10445080 | Tube, Water Dispenser |
|
$ 119.72 |
