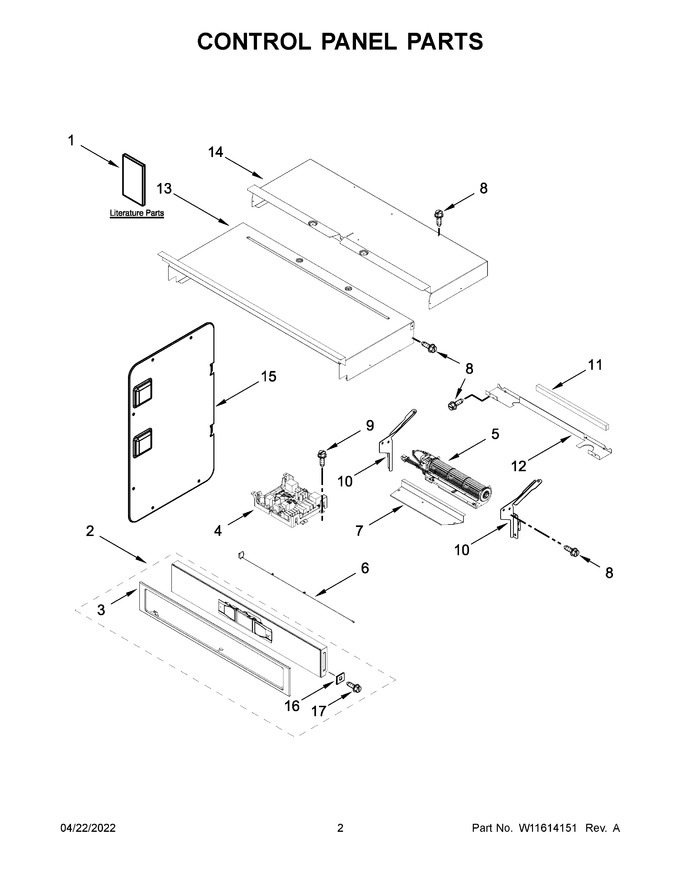

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11382204		Owner's Manual		Appelez-nous	-
2	W11600630		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W11304452)		Appelez-nous	-
3	W11026970		Skin, Control Panel (black)		Appelez-nous	-
4	W11261167		Appliance Manager, Copernicus   (Replaces: W11253187)			Immediately	$ 449.74
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 369.76
6	W11537624		Antenna   (Replaces: W11409842)				$ 101.01
7	W10681157		Cover, Combo Blower		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	7101P43460		Screw		Appelez-nous	-
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.75
12	W11166802		Divider, Chassis Back		Appelez-nous	-
13	W10318158		Chassis, Cover Top Front 30		Appelez-nous	-
14	W10588732		Chassis, Cover Top Back 30				$ 215.10
15	W10655467		Chassis, Combo Side				$ 79.07
16	WP4450118		Nut   (Replaces: 4450118)				$ 7.95
17	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.02
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11419188		Quick Start Guide		Appelez-nous	-
1B	W11416506		Tech Sheet		Appelez-nous	-
2A	W11600324		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W11304451)		Appelez-nous	-
2B	W11600321		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11304450)			Immediately	$ 1,115.10
3A	W11109371		Skin, Control Panel (white)   (Replaces: W11026969)		Appelez-nous	-
3B	W11113207		Skin, Control Panel (stainless)   (Replaces: W10899877)			Immediately	$ 229.28
NI	W11356991		Harness, Ground Console Combo		Appelez-nous	-
NI	W11546965		Harness, Fan And Turntable   (Replaces: W11454022)				$ 75.12
NI	W11539494		Harness, Inverter				$ 41.32
NI	W11578580		Jumper Harness, Communication   (Replaces: W11539527)				$ 28.80
NI	W11797348		Harness, Interlock   (Replaces: W11555169)				$ 123.55
NI	W11555848		Harness, Input		Appelez-nous	-
NI	W11659376		Harness, Main   (Replaces: W11245676)		Appelez-nous	-
NI	W11256629		Harness, Signal		Appelez-nous	-
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 58.86
NI	4448664		Clamp, Conduit				$ 20.39
NI	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 22.35
NI	4450800		Screw, Grounding				$ 12.83
NI	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
NI	W11356990		Harness, Communication				$ 213.74
NI	NP		Rail, Center (not Serviced)		Appelez-nous	-
