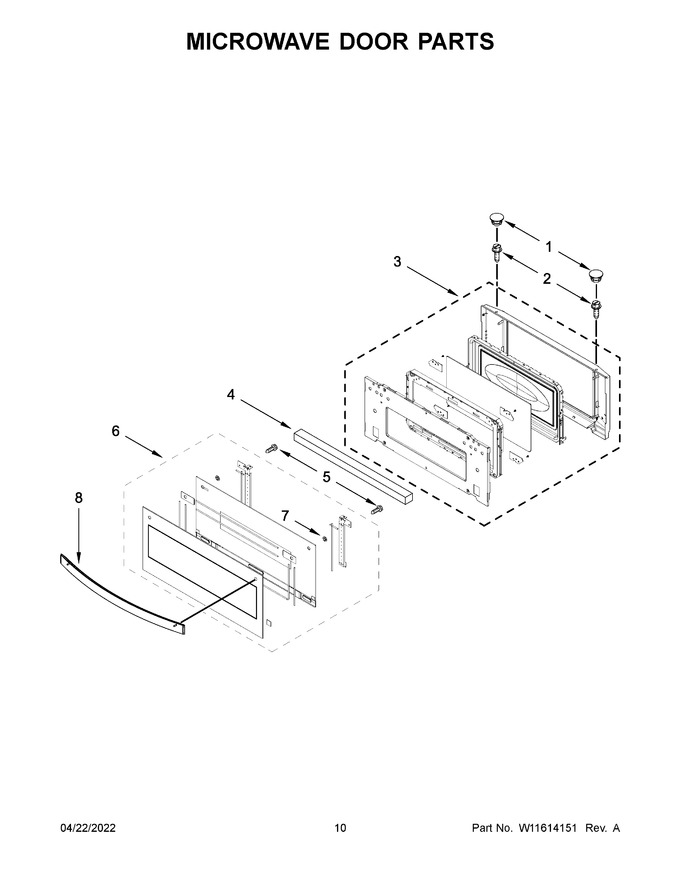

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	7101P33860		Screw		Appelez-nous	-
3	W11684570		Inner Door Assembly   (Replaces: W11328745)			Immediately	$ 593.74
4	W10359769		Foam, Door Handle				$ 14.76
5	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 14.75
6	W11600320		Outer Door Assembly (black)   (Replaces: W11300573)		Appelez-nous	-
7	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
8	W11110491		Handle, Door (black)   (Replaces: W11022638)				$ 188.91
6A	W11600326		Outer Door Assembly (white)   (Replaces: W11300574)		Appelez-nous	-
6B	W11600323		Outer Door Assembly (stainless)   (Replaces: W11300571)			Immediately	$ 620.68
8A	W11110492		Handle, Door (white)   (Replaces: W11022639)				$ 188.91
8B	W11110499		Handle, Door (stainless)   (Replaces: W10875206)			Immediately	$ 188.20
