SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

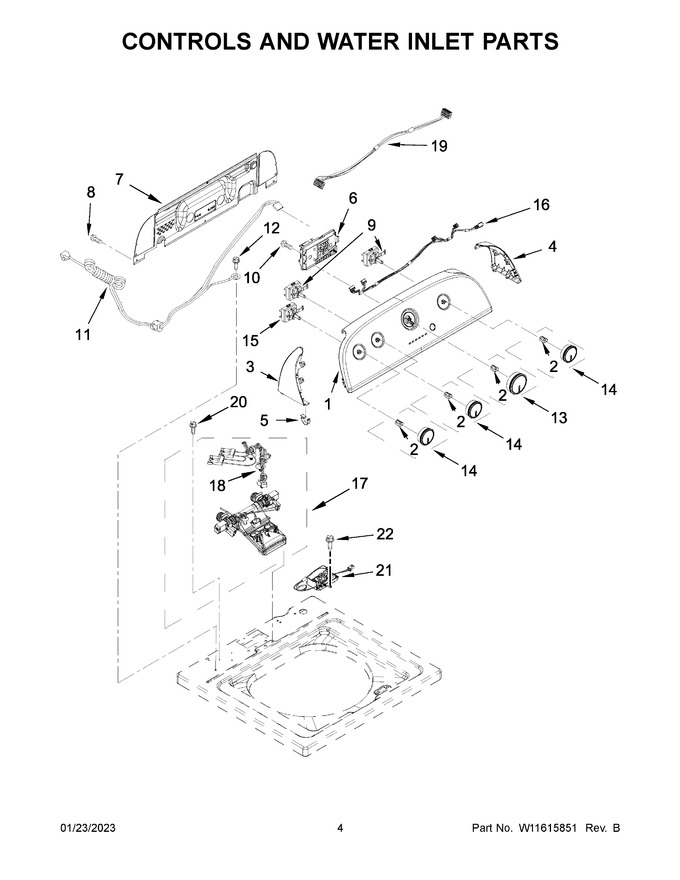

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11099226		Panel, Console   (Replaces: W10774519)		Appelez-nous	-
2	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
3	W10806902		End Cap (left) (white)		Appelez-nous	-
4	W10806901		End Cap (right) (white)		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11608065		Control Unit Assembly, Machine And Motor   (Replaces: W11578969)		Appelez-nous	-
7	W10552335		Panel, Console Rear Cover				$ 343.17
8	W11685943		Screw   (Replaces: W10660565)				$ 14.97
9	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 190.47
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	W10834290		Power Cord, Universal		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	W11501455		Knob, Timer (white/metallic)   (Replaces: W10576634)				$ 45.78
14	W10576636		Assembly, Control Knob (white/metallic)		Appelez-nous	-
15	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 135.86
16	W10694682		Harness, Upper		Appelez-nous	-
17	W11038628		Inlet Assembly, Water   (Replaces: W11026622)				$ 244.90
18	W10917060		Harness, Valve		Appelez-nous	-
19	W10786100		Harness, Jumper				$ 189.98
20	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 7.55
21	W11660637		Assembly, Line Filter   (Replaces: W10906192)		Appelez-nous	-
22	W11568617		Screw   (Replaces: W10567155)				$ 14.72
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 28.04
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	W10474959		10a Cord Adapter (south Africa)		Appelez-nous	-
NI	WPW10475423		10a Cord Adapter (type B)   (Replaces: W10475423)				$ 21.75
NI	W11752087		Cord Adapter, European   (Replaces: W10476821)				$ 59.31
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 80.90

    View Diagram in Separate Window       Print Part List
